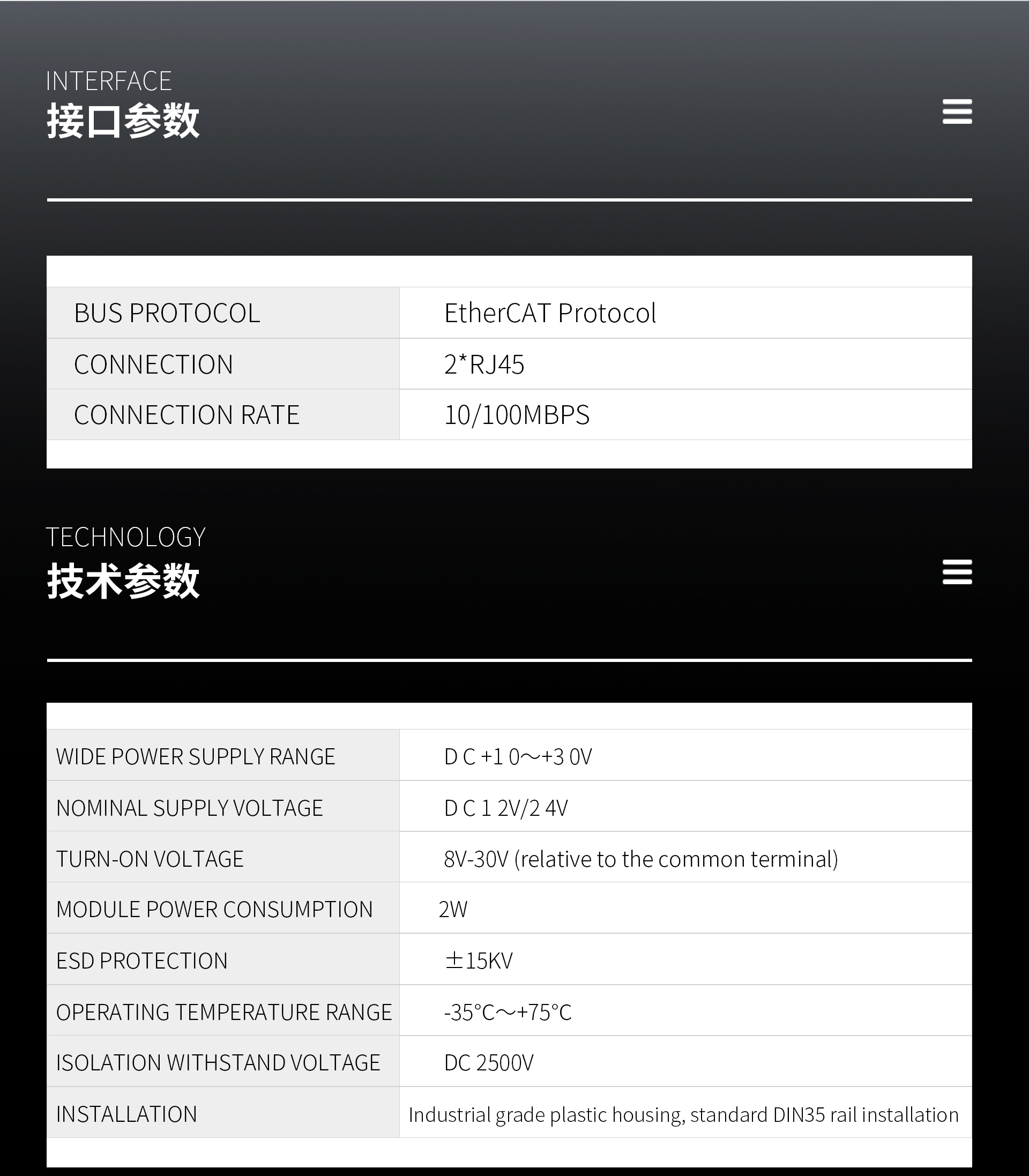

Supply voltage

10~30V DC

Number of channels

16-channel switching input

Supply voltage

24V DC

Power consumption

<2W（@24V DC ）

Isolation withstand voltage

DC 2500V

Working temperature

-35℃~75℃

Network Interface

2*RJ45

Connection rate

10/100Mbps

Ambient humidity

5%-95% (no condensation)

Protection level

IP20

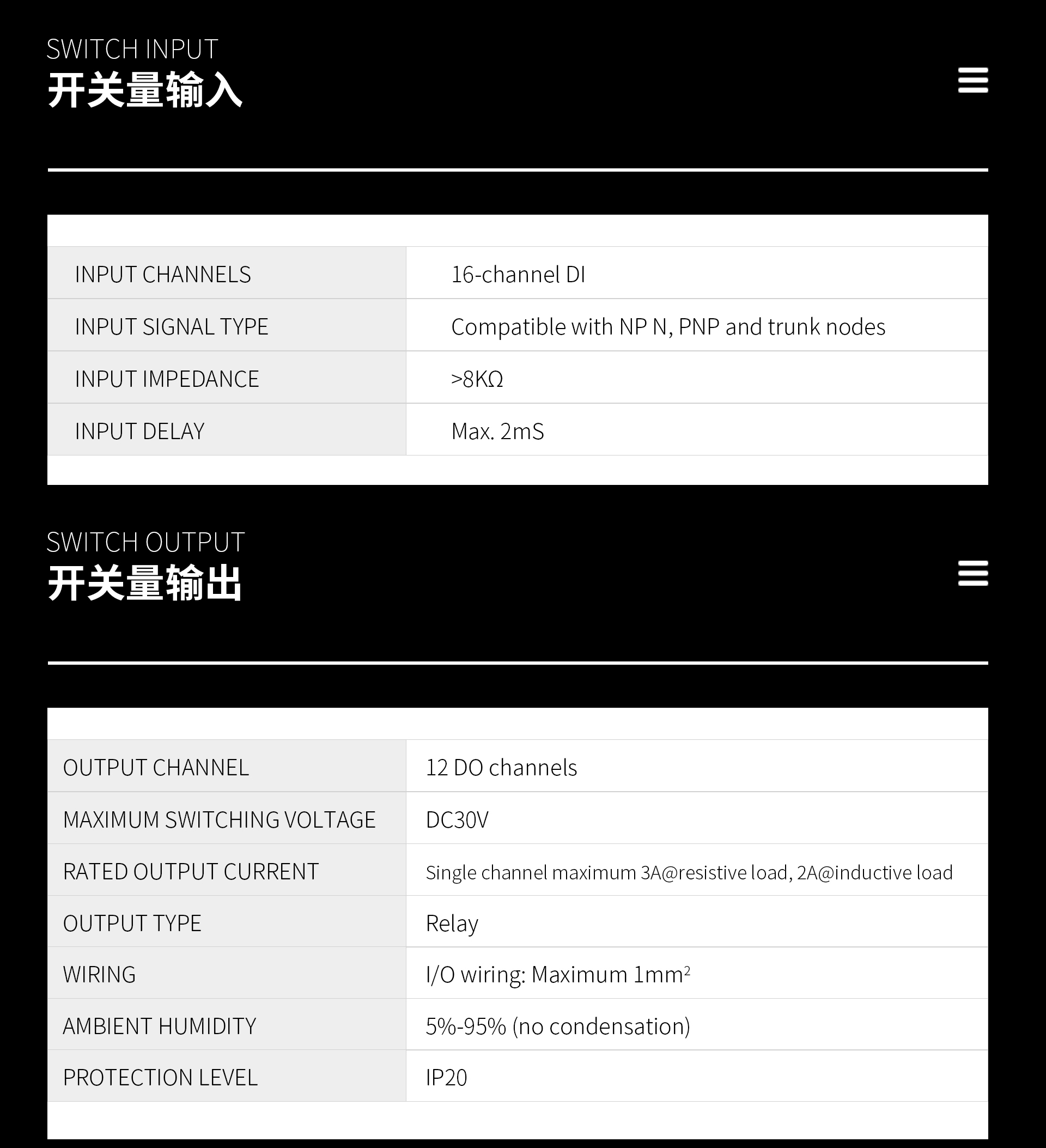

Rated output current

Single channel maximum 3A@resistive load, 2A@inductive load

Number of channels

12-way relay output

Communication Interface

EtherCAT
