CK-3043RS RS485 cascade PT100/PT1000 thermal resistance acquisition module channel isolation

Specification/Strength：4-way PT100/PT1000

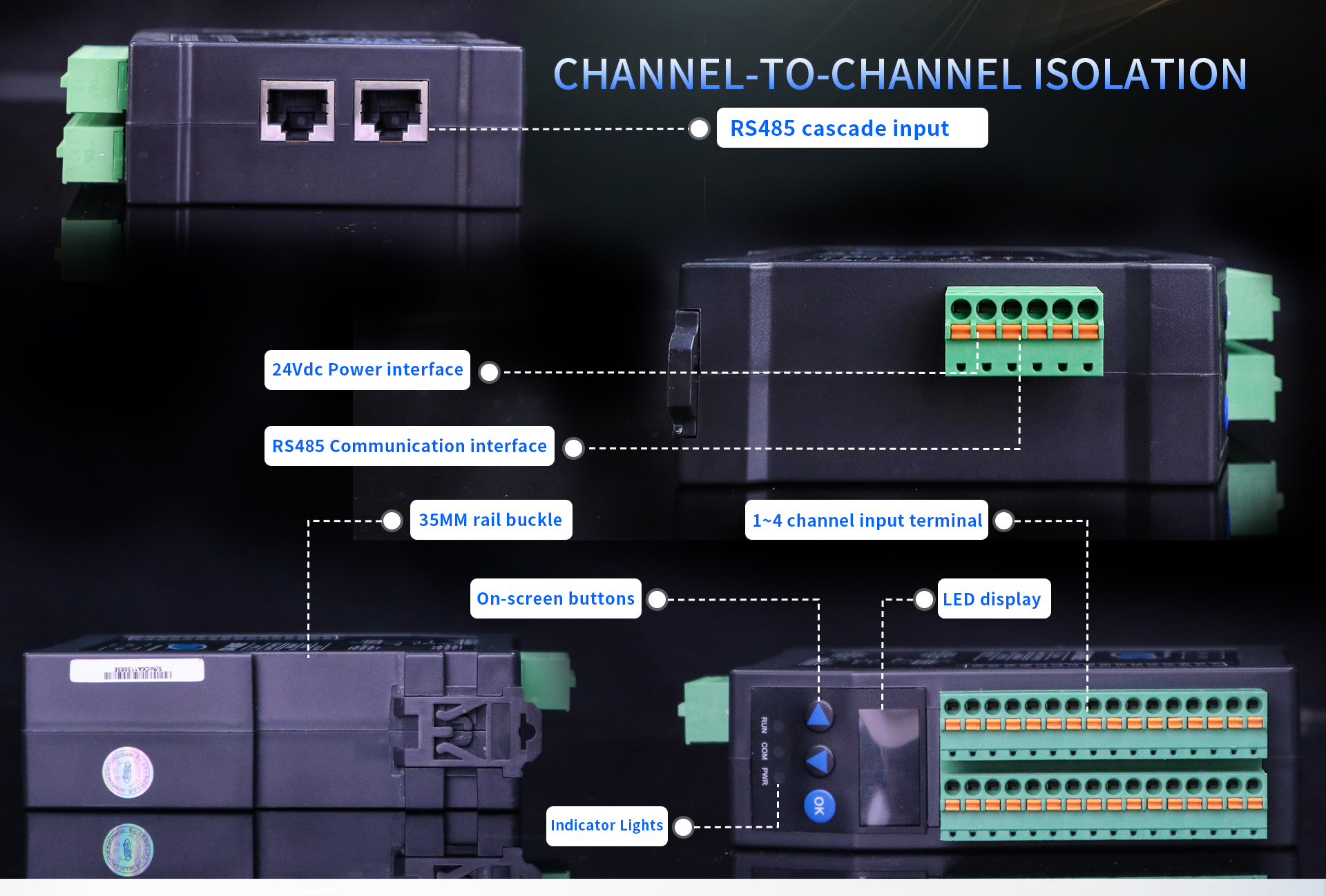

Interface type: Ethernet cascade, RS485
Bus protocol: Modbus-TCP/Modbus-RTU
OLED screen display: supports key adjustment of address, baud rate, check bit, stop bit, IP address

Join Compare Join Selection

Product DescriptionsTechnical ParameterDownload

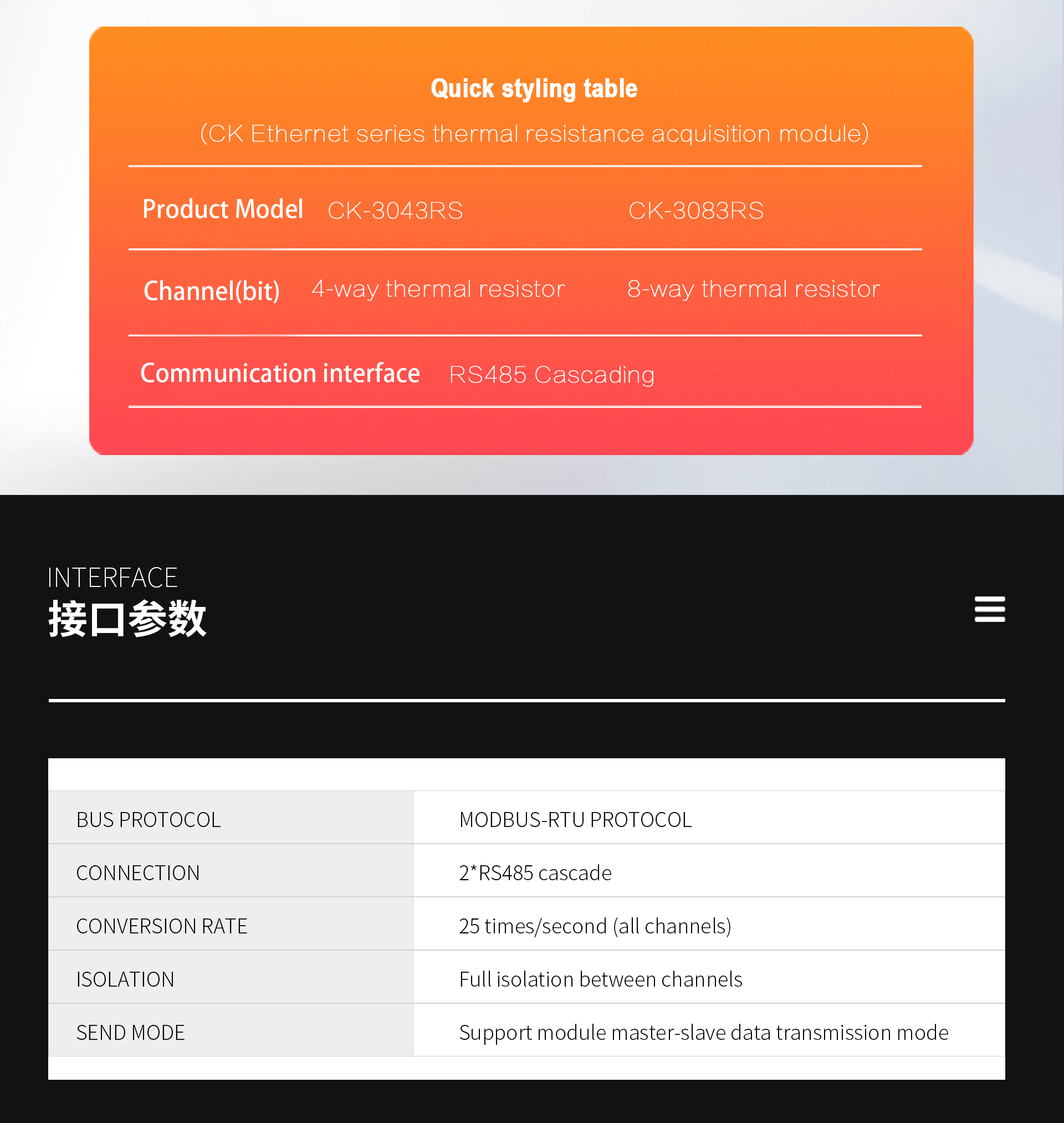

Communication Protocol

Standard Modbus RTU protocol
ADC Resolution

16Bit
Communication Interface

RS485 Cascading
Conversion speed

25 times/second (full channel)
Supply voltage

10~30V DC
Number of channels

4
Working temperature

-30℃~70℃
Communication speed

Default 9600bps (up to 115200bps)
Conversion accuracy

±0.5℃
Isolation withstand voltage

DC 2500V

Documents

Procedures

Weiluntong Chengkong module modbus tcp example

Mitsubishi Chengkong module modbus tcp example

Omron Chengkong module modbus tcp example

Kunlun Tongtai Chengkong module modbus tcp example

Siemens Chengkong module modbus tcp example

Delta Chengkong module modbus tcp example

Software

Chengkong Blade Module Configuration Tool V3.51

Product debugging software

Data Sheet

CK-3043RS-3083RS Specifications-Vr1.0

Application Notes
