CK-8160E Ethernet RS485 dual interface analog input 4-20ma/0-5V data acquisition module

Specification/Strength：16-way 4-20ma/0-20ma/0-5V/0-10V/±5V/±10V/±20ma/±100mV

Interface type: Ethernet cascade, RS485
Bus protocol: Modbus-TCP/Modbus-RTU
DIP: Support local DIP address adjustment 1`99

Join Compare Join Selection

Product DescriptionsTechnical ParameterDownload

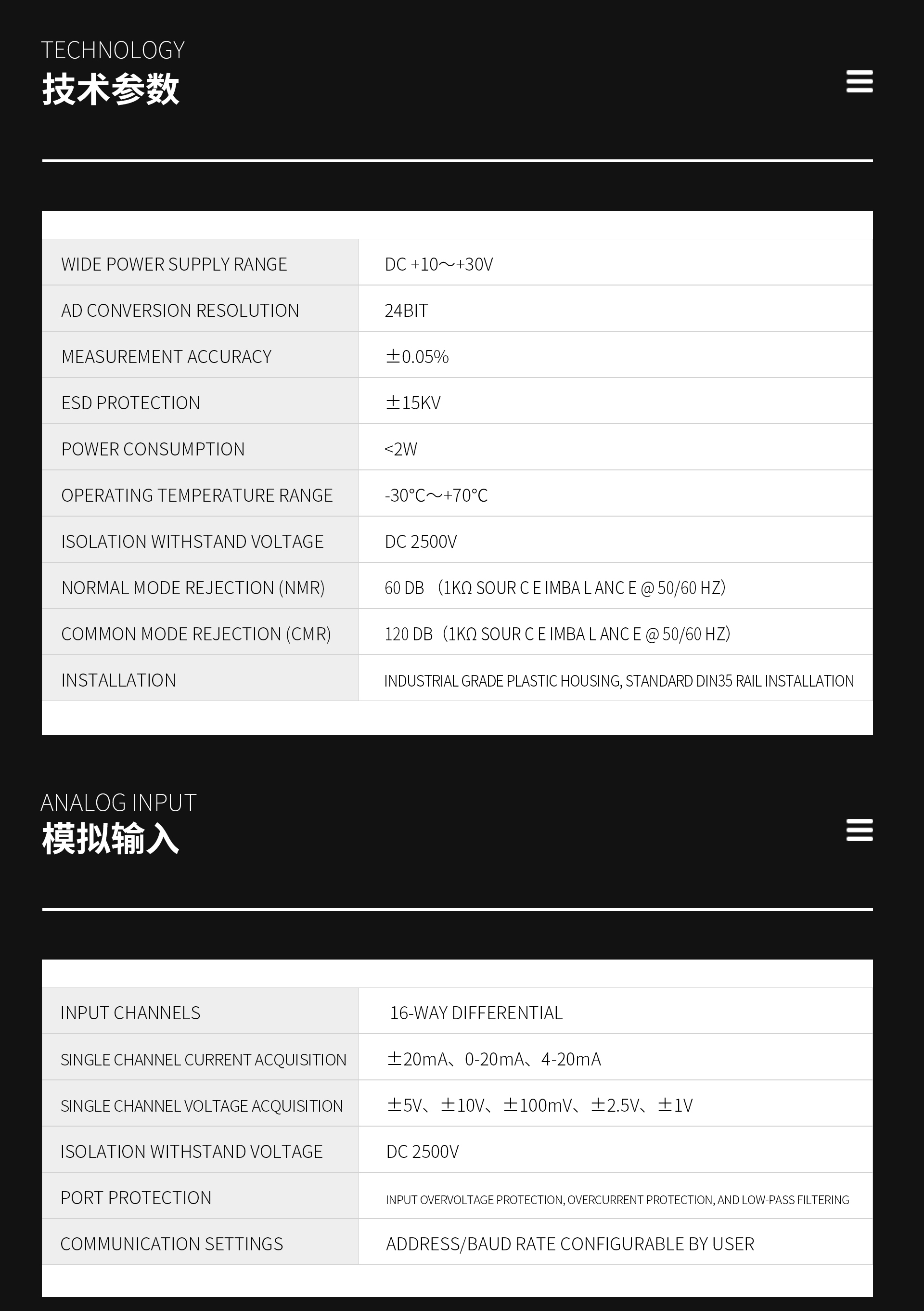

  • ADC Resolution

    24Bit

  • Supply voltage

    10~30V DC

  • Conversion speed

    50 times/second (full channel)

  • Communication Interface

    RS485+Ethernet

  • Conversion accuracy

    ±0.05%

  • Working temperature

    -30℃~70℃

  • Communication speed

    Default 9600bps (up to 115200bps)

  • Power consumption

    <2W（@24V DC ）

  • Communication Protocol

    Standard Modbus-TCP and Modbus-RTU protocols

  • Isolation withstand voltage

    DC 2500V

      Documents

      Procedures

    1. Weiluntong Chengkong module modbus tcp example
    2. Mitsubishi Chengkong module modbus tcp example
    3. Omron Chengkong module modbus tcp example
    4. Kunlun Tongtai Chengkong module modbus tcp example
    5. Siemens Chengkong module modbus tcp example
    6. Delta Chengkong module modbus tcp example

      Software

    1. Chengkong Blade Module Configuration Tool V3.51
    2. Product debugging software

      Data Sheet

    1. CK-8160E Specifications-Vr1.0

      Application Notes
