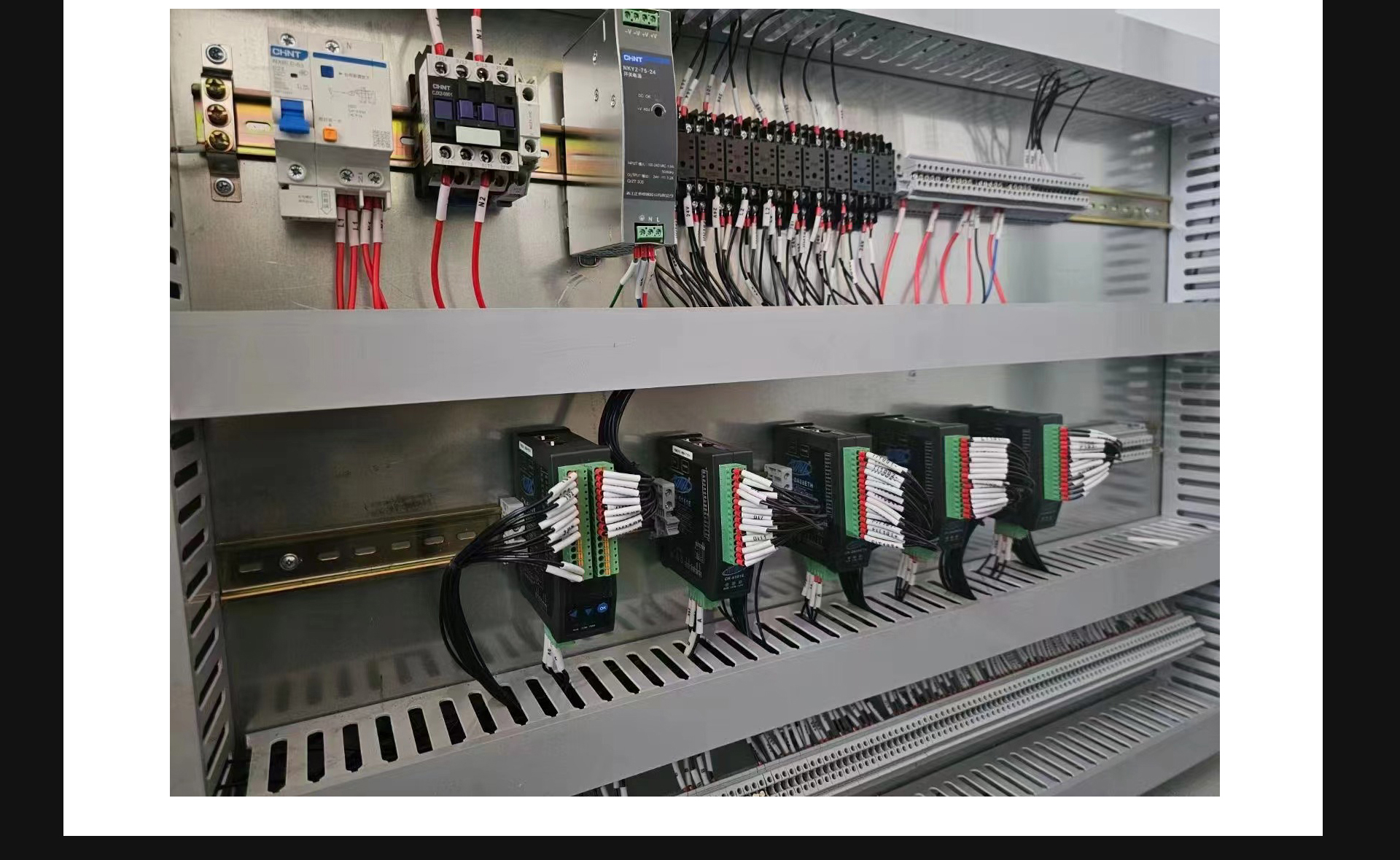

CK-7160E Ethernet RS485 dual interface analog input 4-20ma/0-5V data acquisition module

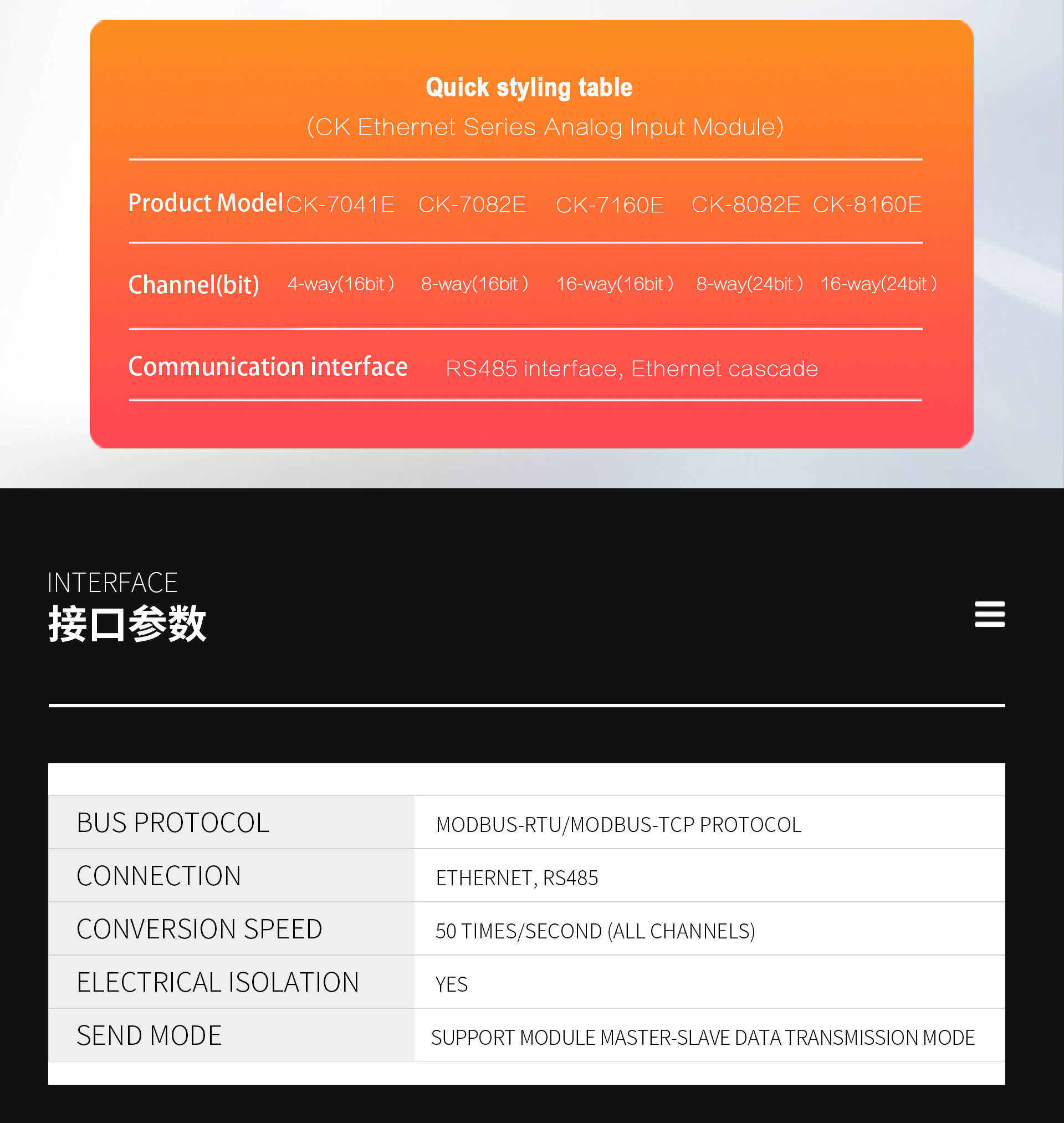

Specification/Strength：16-way 4-20ma/0-20ma/0-5V/0-10V/±5V/±10V/±20ma/±100mV

Interface type: Ethernet cascade, RS485
Bus protocol: Modbus-TCP/Modbus-RTU

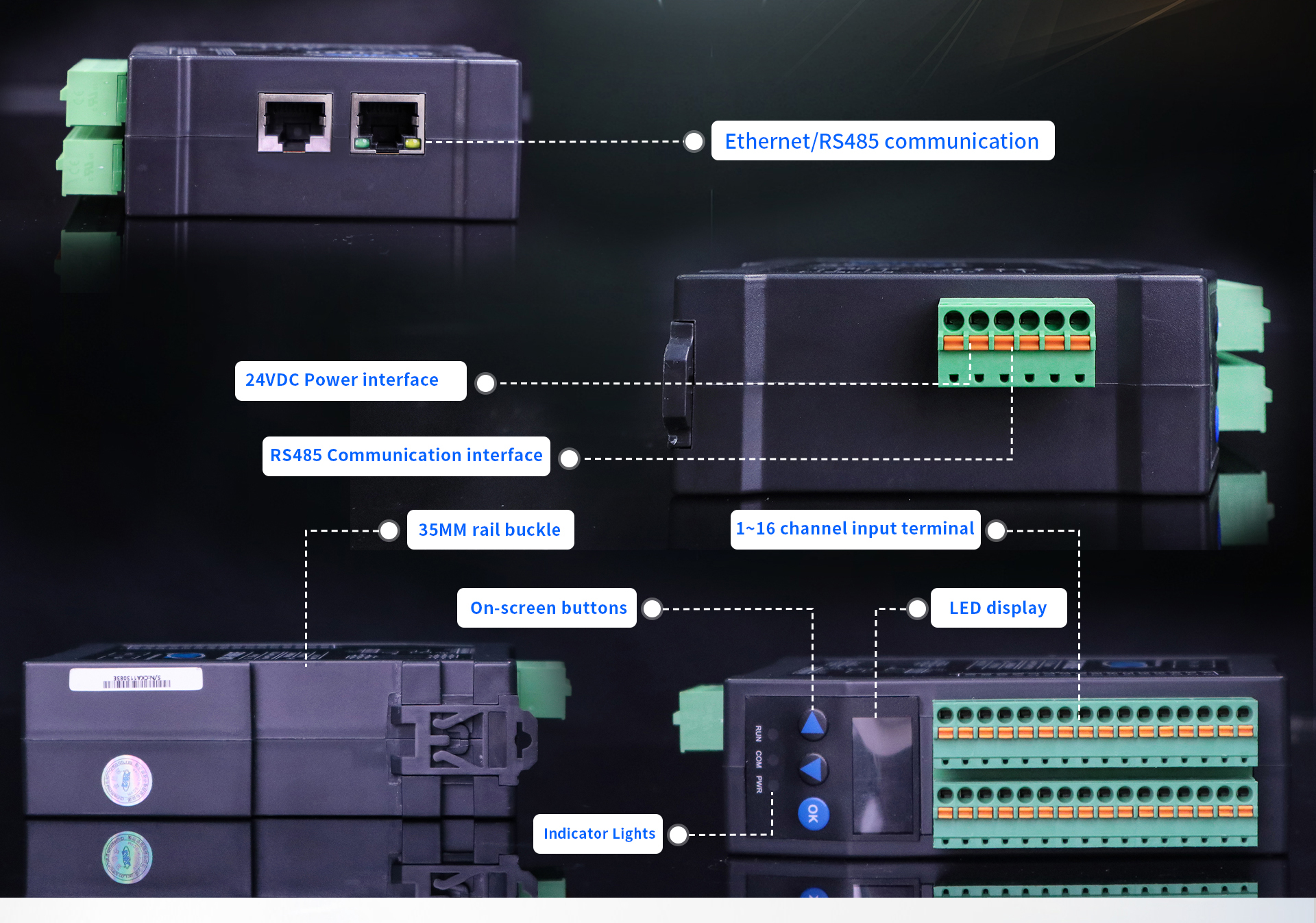

OLED screen display: supports key adjustment of address, baud rate, check bit, stop bit, IP address

Join Compare Join Selection

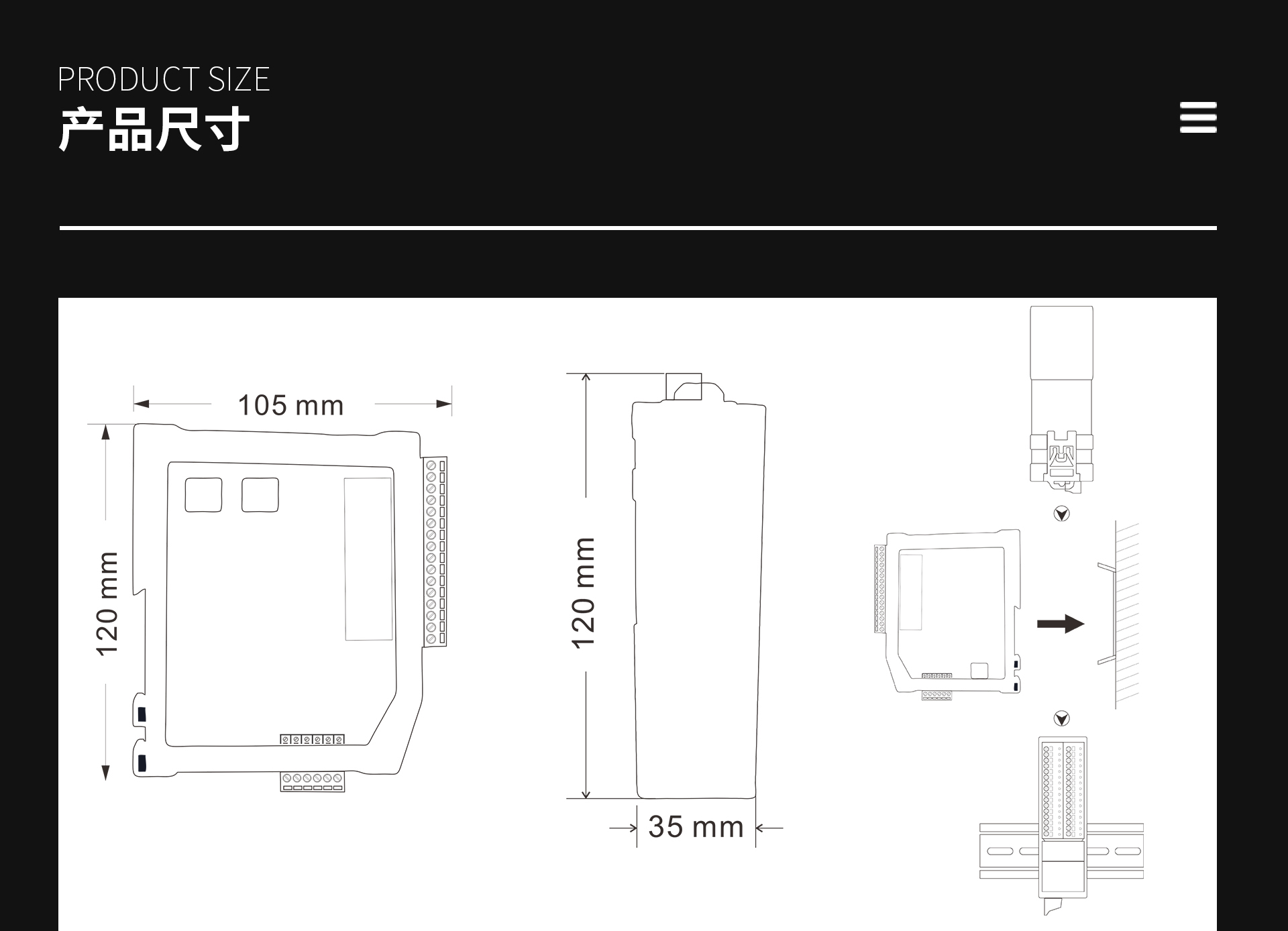

Product DescriptionsTechnical ParameterDownload

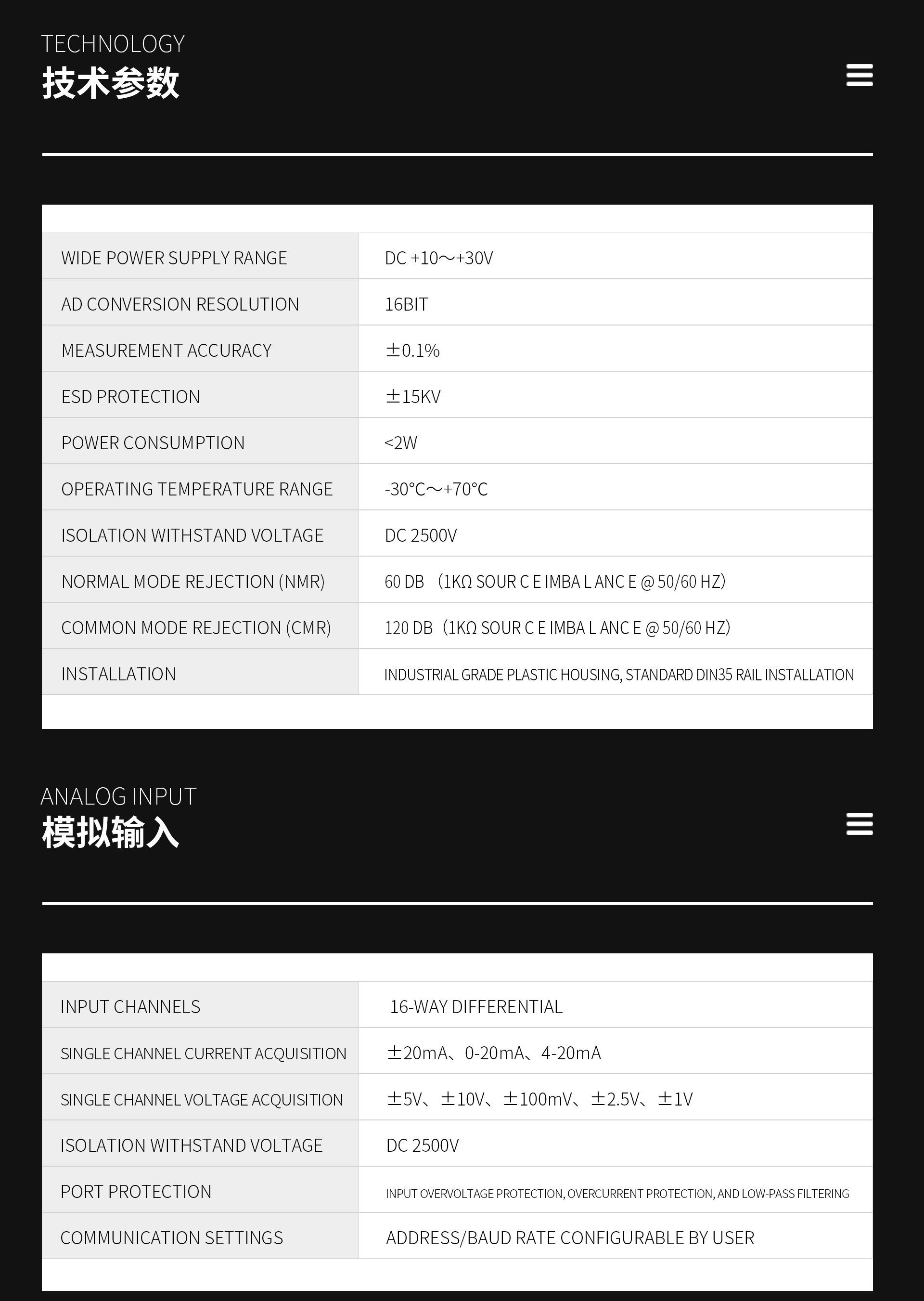

ADC Resolution

16Bit
Supply voltage

10~30V DC
Conversion speed

50 times/second (full channel)
Communication Interface

RS485+Ethernet
Conversion accuracy

±0.1%
Working temperature

-30℃~70℃
Communication speed

Default 9600bps (up to 115200bps)
Number of channels

16
Power consumption

<2W（@24V DC ）
Communication Protocol

Standard Modbus-TCP and Modbus-RTU protocols
Isolation withstand voltage

DC 2500V

Documents

Procedures

Weiluntong Chengkong module modbus tcp example

Mitsubishi Chengkong module modbus tcp example

Omron Chengkong module modbus tcp example

Kunlun Tongtai Chengkong module modbus tcp example

Siemens Chengkong module modbus tcp example

Delta Chengkong module modbus tcp example

Software

Chengkong Blade Module Configuration Tool V3.51

Product debugging software

Data Sheet

CK-7160E Specifications-Vr1.0

Application Notes
