CK-3168E Ethernet cascade K/J/T/E/R/N/B/S thermocouple acquisition module

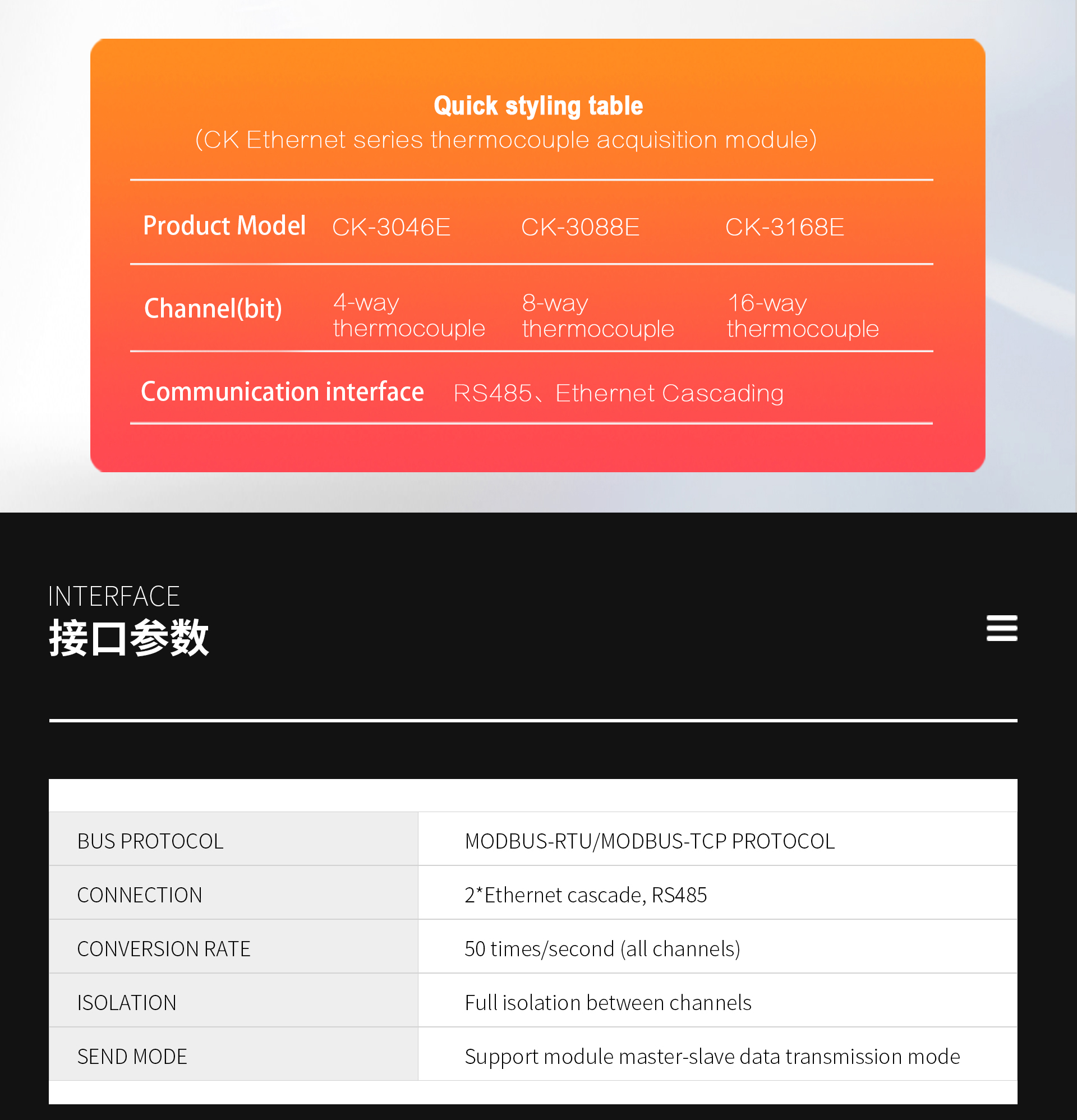

Specification/Strength：16-way K/J/T/E/R/N/B/S type

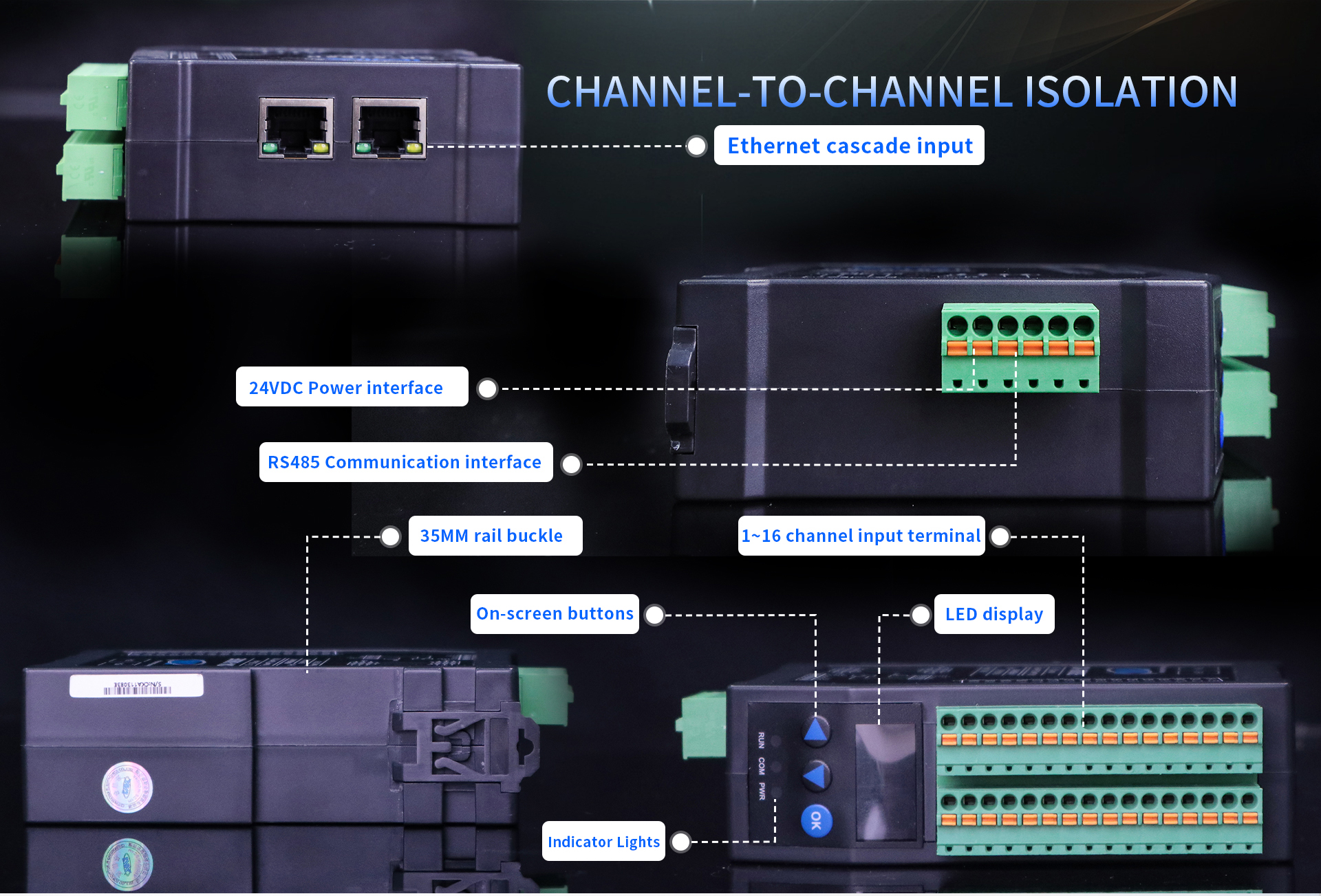

Interface type: Ethernet cascade, RS485
Bus protocol: Modbus-TCP/Modbus-RTU
OLED screen display: supports key adjustment of address, baud rate, check bit, stop bit, IP address

Join Compare Join Selection

Product DescriptionsTechnical ParameterDownload

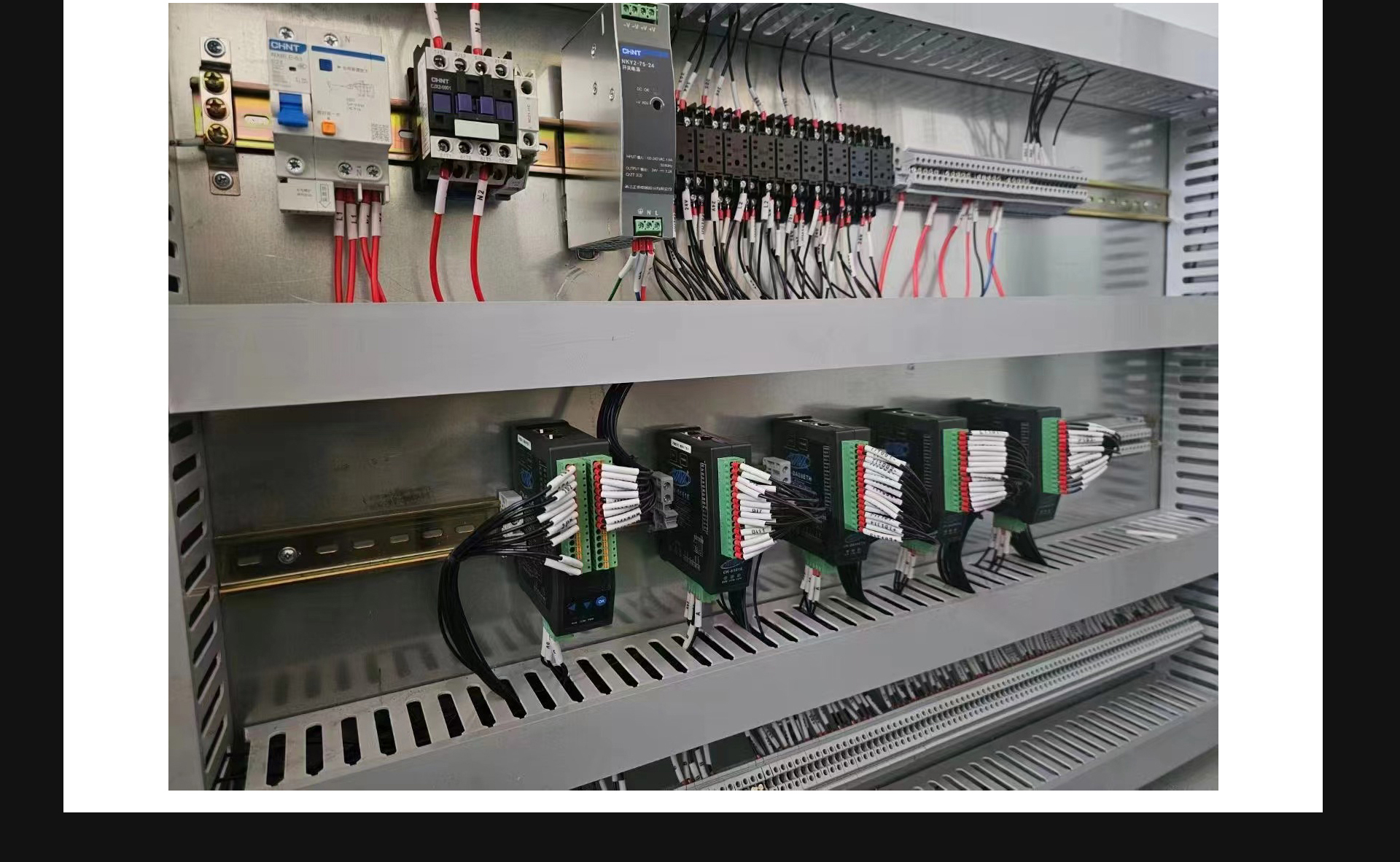

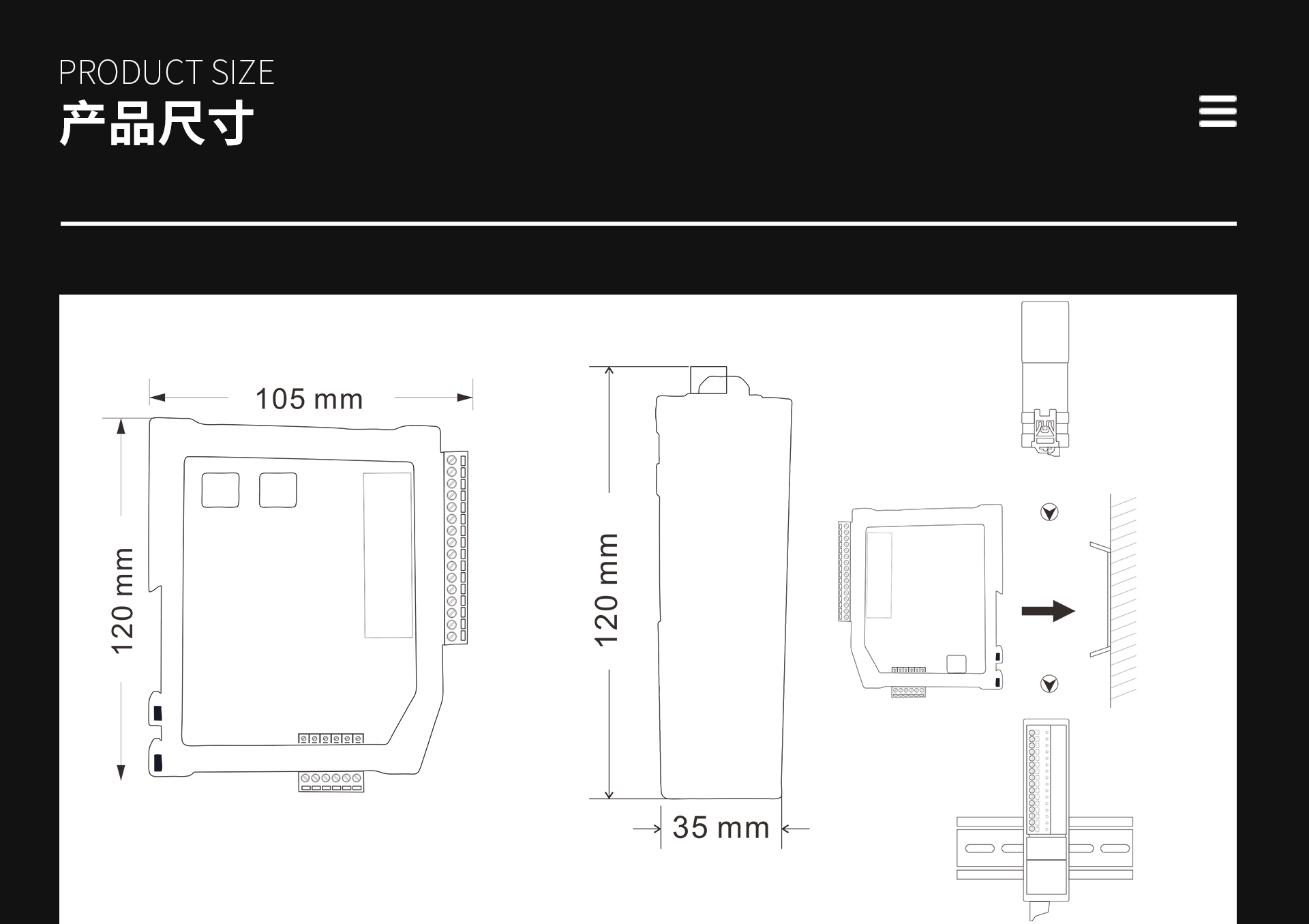

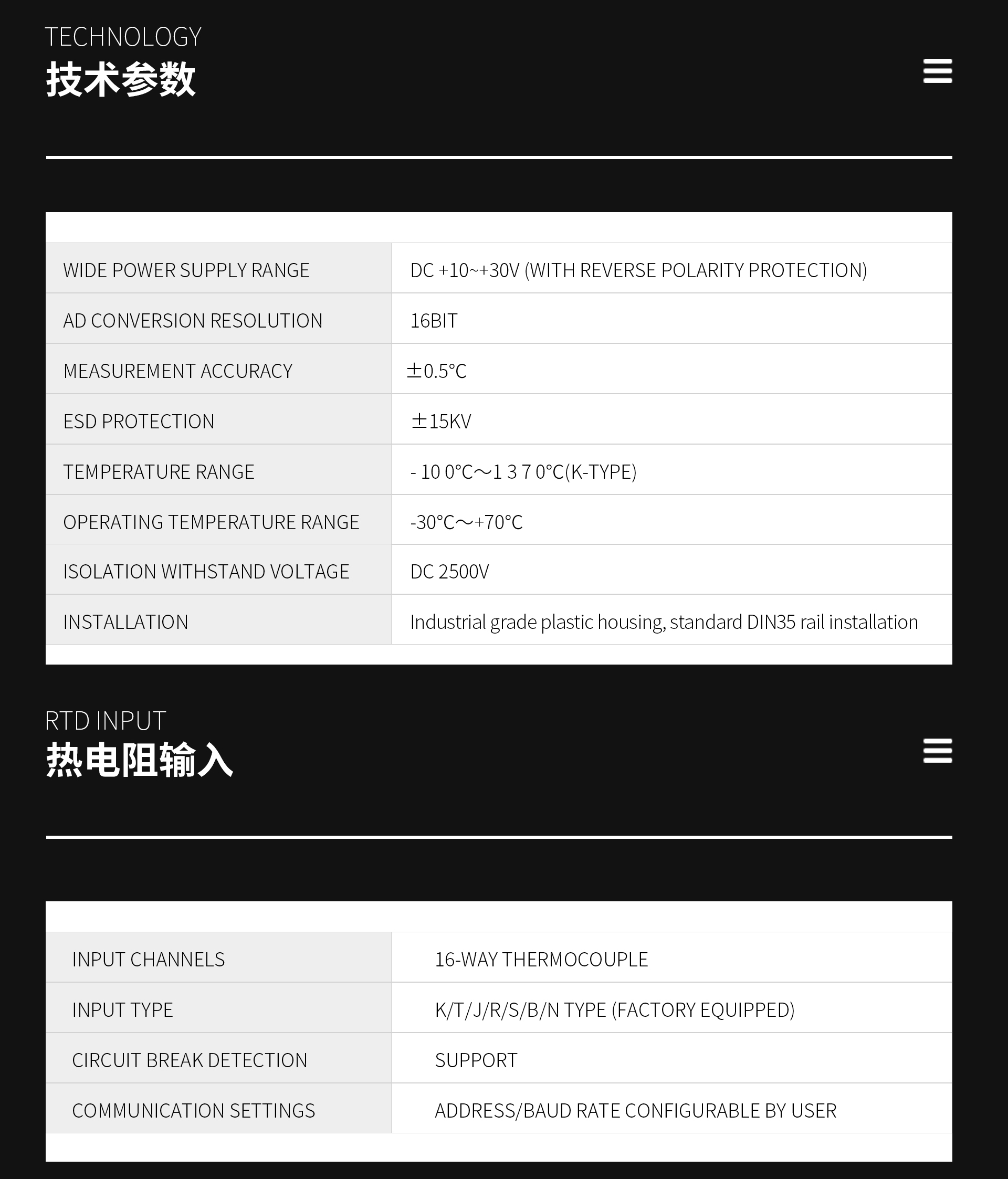

ADC Resolution

16Bit
Supply voltage

10~30V DC
Conversion speed

50 times/second (full channel)
Communication Interface

Ethernet Cascading
Power consumption

<1W（@24V DC ）
Working temperature

-30℃~70℃
Communication speed

Default 9600bps (up to 115200bps)
Number of channels

16
Conversion accuracy

±0.5℃
Communication Protocol

Standard Modbus-TCP and Modbus-RTU protocols
Isolation withstand voltage

DC 2500V

Documents

Procedures

Weiluntong Chengkong module modbus tcp example

Mitsubishi Chengkong module modbus tcp example

Omron Chengkong module modbus tcp example

Kunlun Tongtai Chengkong module modbus tcp example

Siemens Chengkong module modbus tcp example

Delta Chengkong module modbus tcp example

Software

Chengkong Blade Module Configuration Tool V3.51

Data Sheet

CK-3046E/3088E/3168E-Vr1.10 Ethernet Cascade Thermocouple Series Specifications

Application Notes
