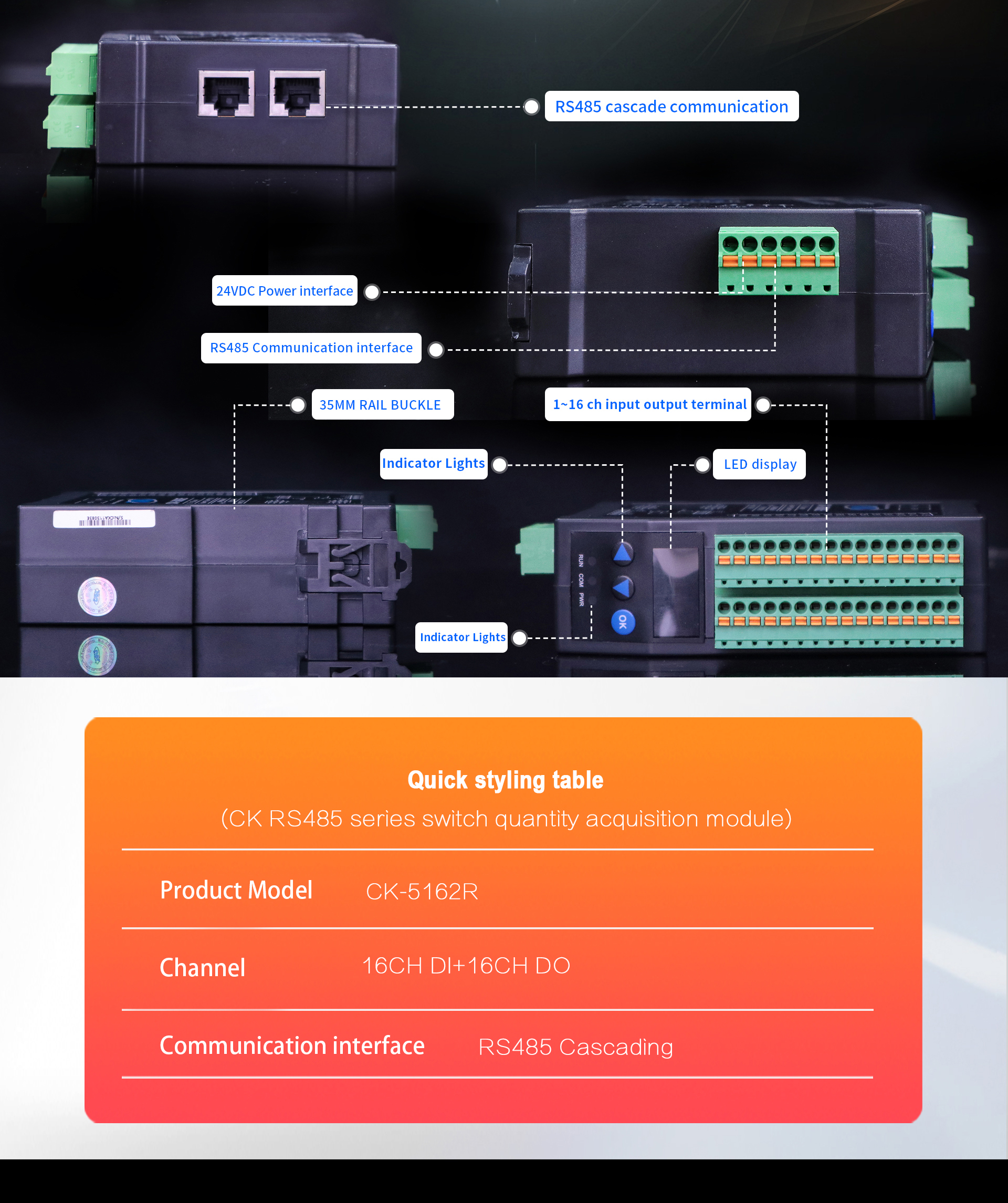

CK-5162R dual 485 port cascade 16-way switch input and output remote IO module

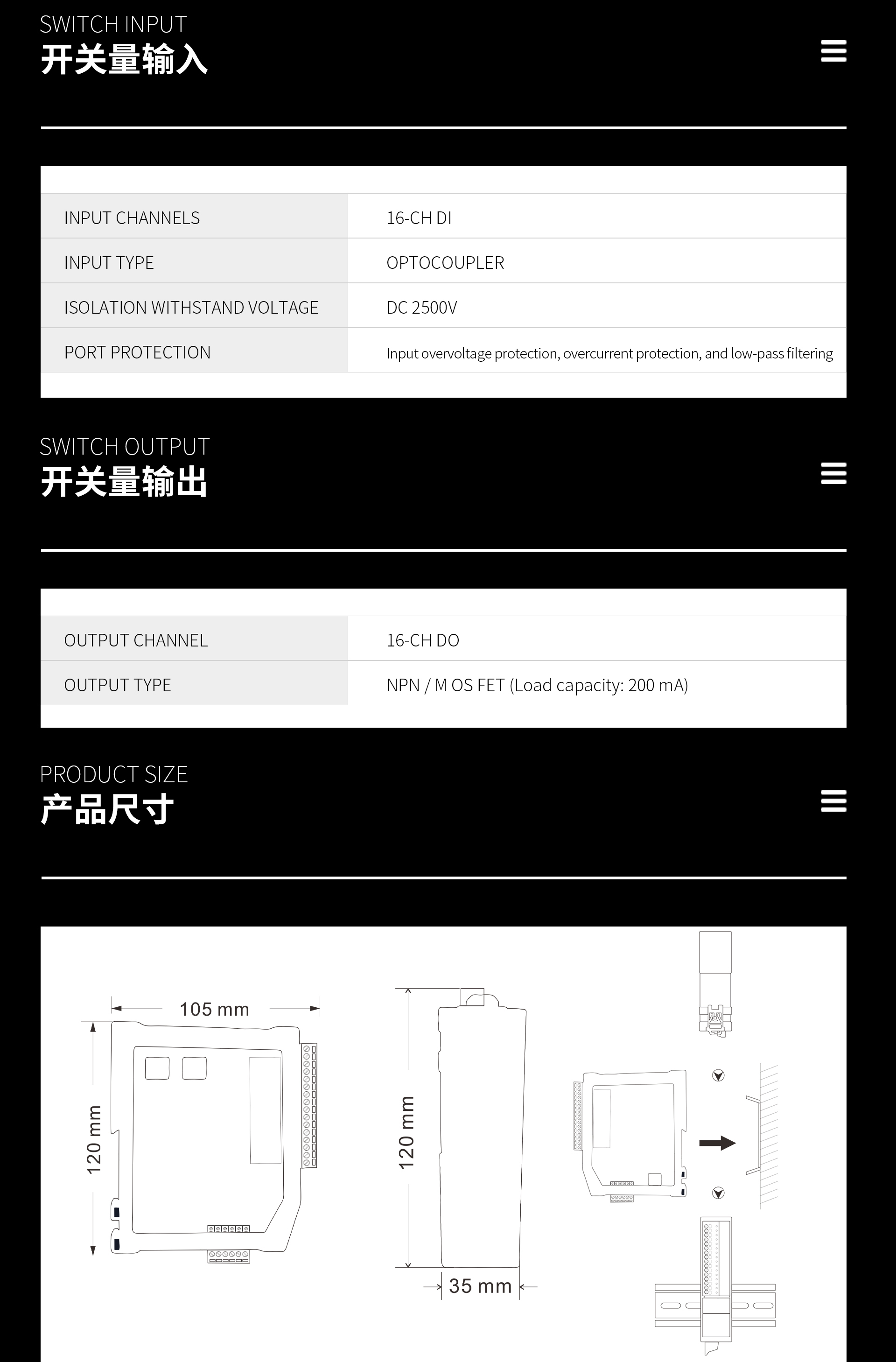

Specification/Strength：16-Way DIDO

Interface type: RS485 cascade
Bus protocol: Modbus-TCP/Modbus-RTU
OLED screen display: supports key adjustment of address, baud rate, check bit, stop bit, IP address

Join Compare Join Selection

Product DescriptionsTechnical ParameterDownload

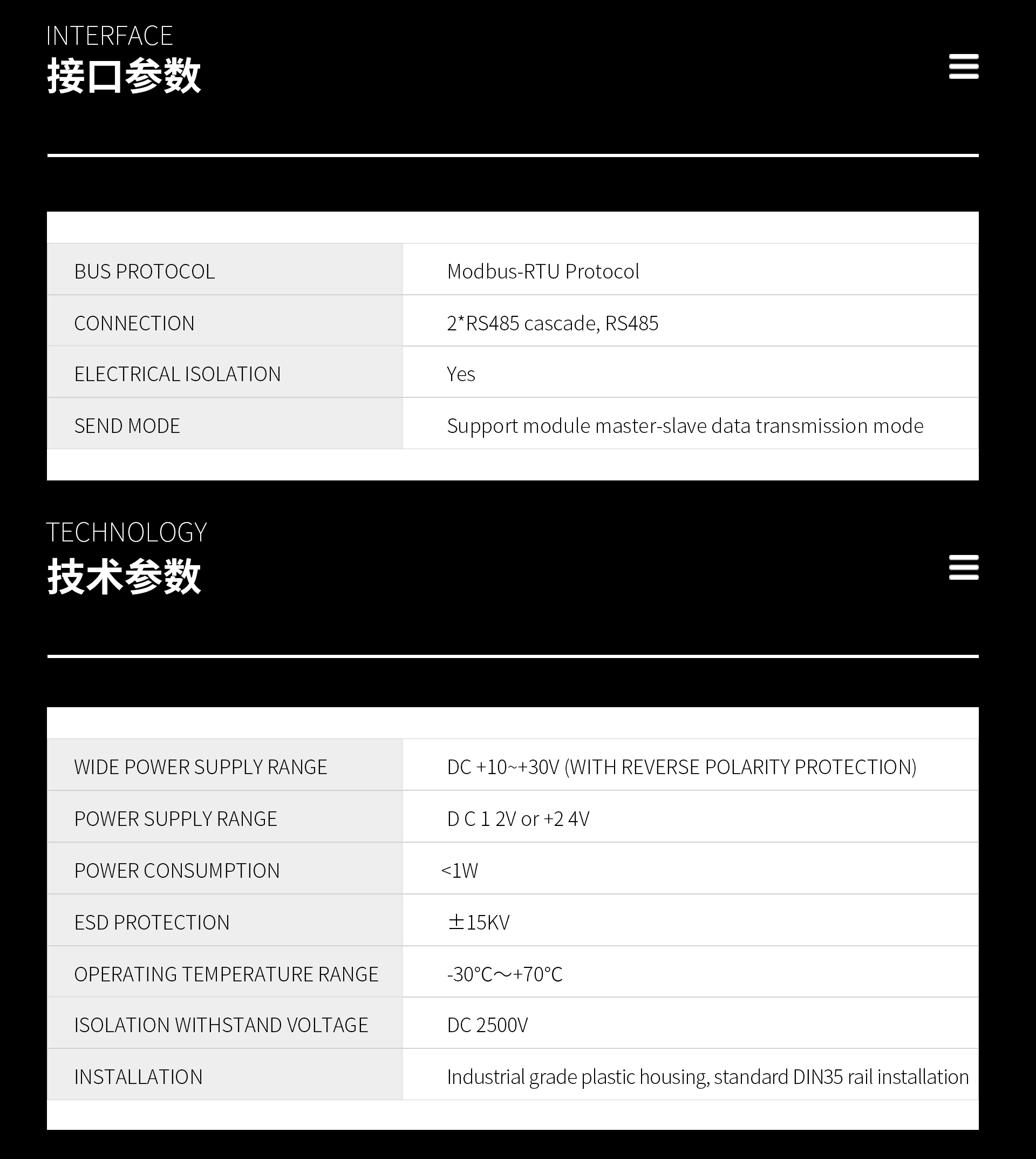

Communication Protocol

Standard Modbus RTU protocol
Supply voltage

10~30V DC
Power consumption

<1W（@24V DC ）
Working temperature

-30℃~70℃
Communication speed

Default 9600bps (up to 115200bps)
Isolation withstand voltage

DC 2500V

Documents

Procedures

Weiluntong Chengkong module modbus tcp example

Mitsubishi Chengkong module modbus tcp example

Omron Chengkong module modbus tcp example

Kunlun Tongtai Chengkong module modbus tcp example

Siemens Chengkong module modbus tcp example

Delta Chengkong module modbus tcp example

Software

Chengkong Blade Module Configuration Tool V3.51

Product debugging software

Data Sheet

CK-5162R-Vr1.0 RS485 cascade switch input and output specification

Application Notes
