CK-3046R Dual 485 port cascade thermocouple acquisition module Modbus RTU temperature sensor

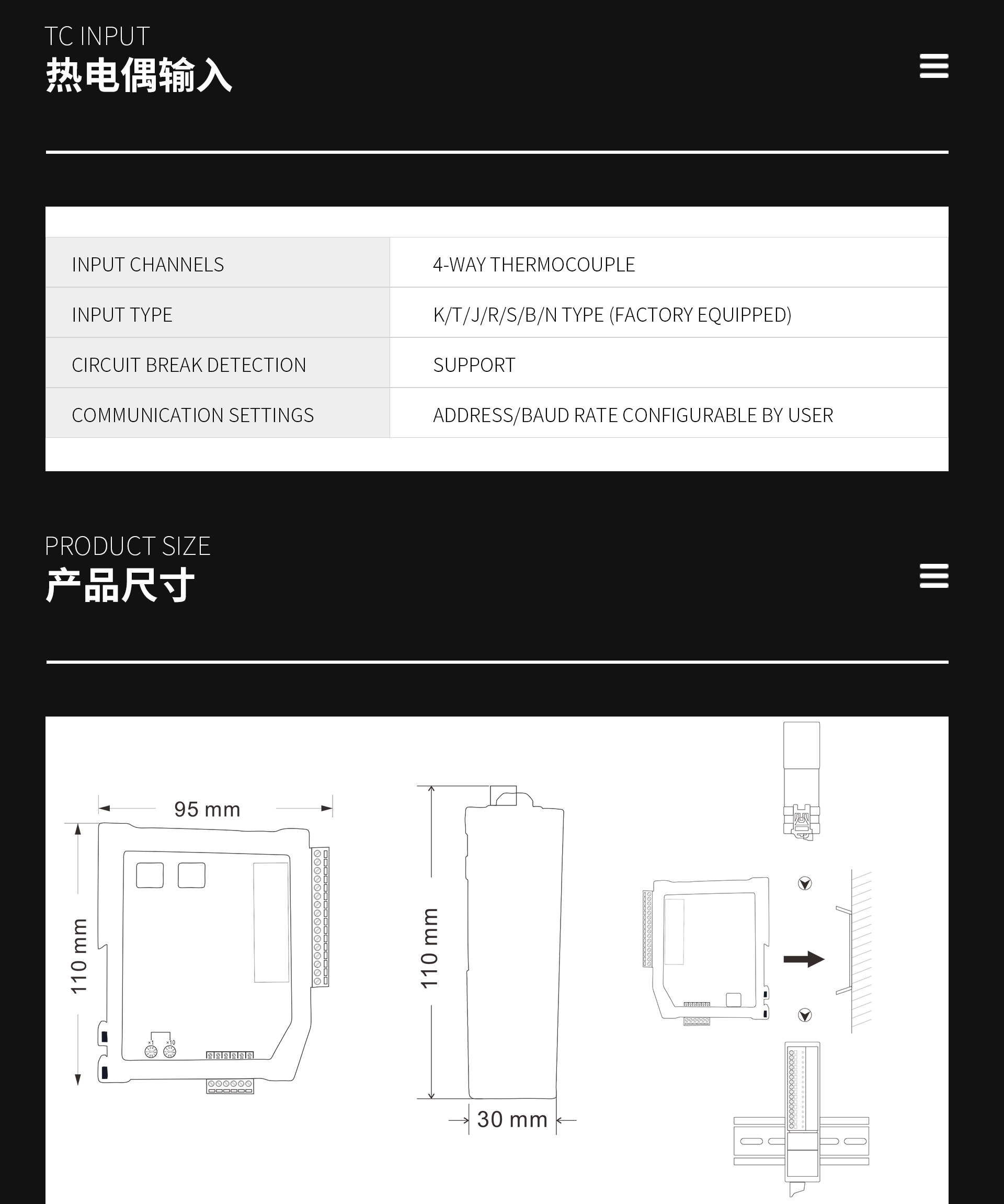

Specification/Strength：4-way K/J/T/D/R/S/N/B type

Interface type: RS485 cascade
Bus protocol: Modbus RTU
Dial: Support local dial address 1`99

Join Compare Join Selection

Product DescriptionsTechnical ParameterDownload

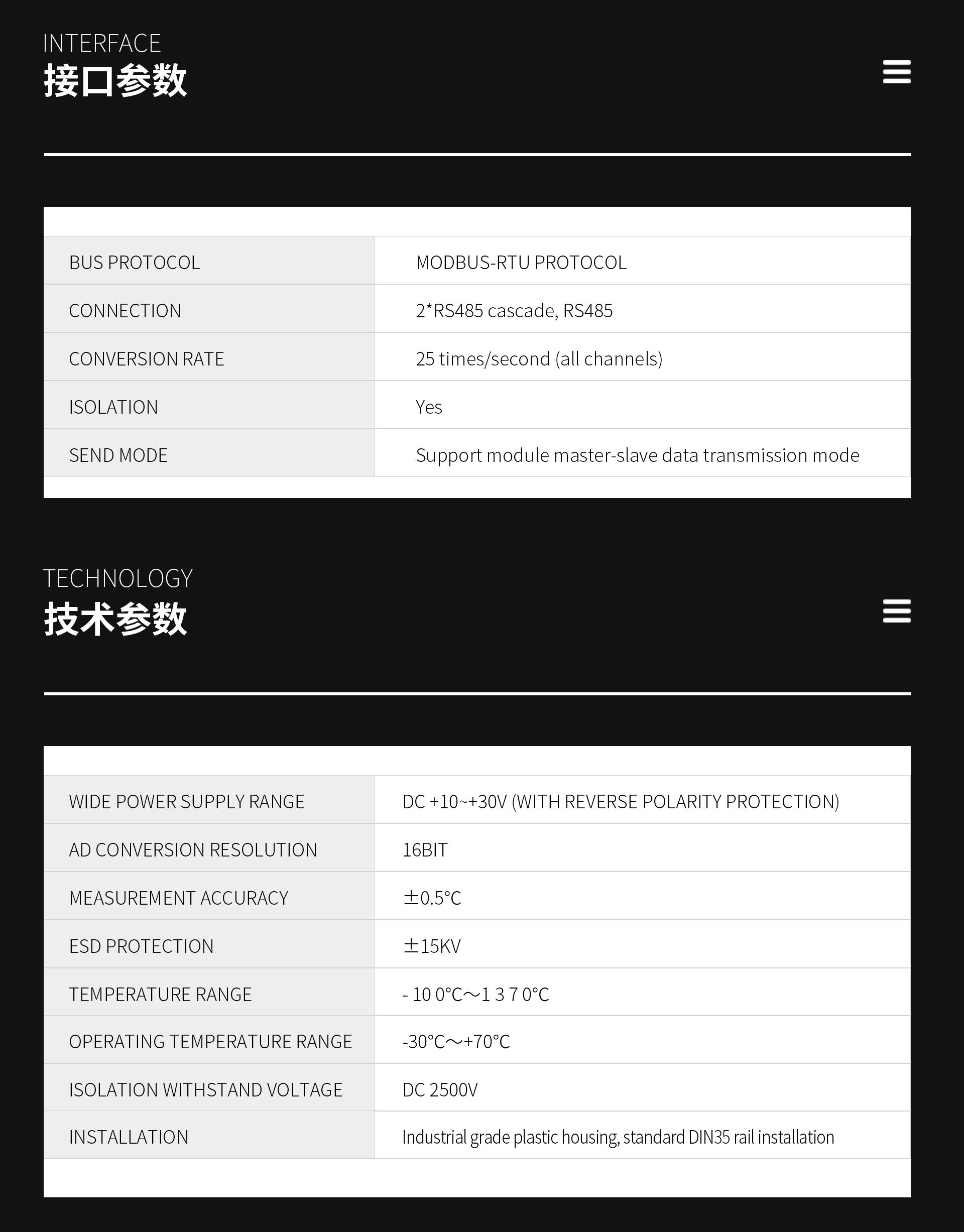

  • Communication Protocol

    Standard Modbus RTU protocol

  • ADC Resolution

    16Bit

  • Conversion speed

    25 times/second (full channel)

  • Supply voltage

    10~30V DC

  • Working temperature

    -30℃~70℃

  • Communication speed

    Default 9600bps (up to 115200bps)

  • Conversion accuracy

    ±0.5℃

  • Power consumption

    <2W（@24V DC ）

  • Isolation withstand voltage

    DC 2500V

      Documents

      Procedures

    1. Weiluntong Chengkong module modbus tcp example
    2. Mitsubishi Chengkong module modbus tcp example
    3. Omron Chengkong module modbus tcp example
    4. Kunlun Tongtai Chengkong module modbus tcp example
    5. Siemens Chengkong module modbus tcp example
    6. Delta Chengkong module modbus tcp example

      Software

    1. Chengkong Blade Module Configuration Tool V3.51
    2. Product debugging software

      Data Sheet

    1. CK-3046R-Vr1.0 Dual 485 Port Cascade 4 Channel Thermocouple Acquisition Module Specification

      Application Notes
