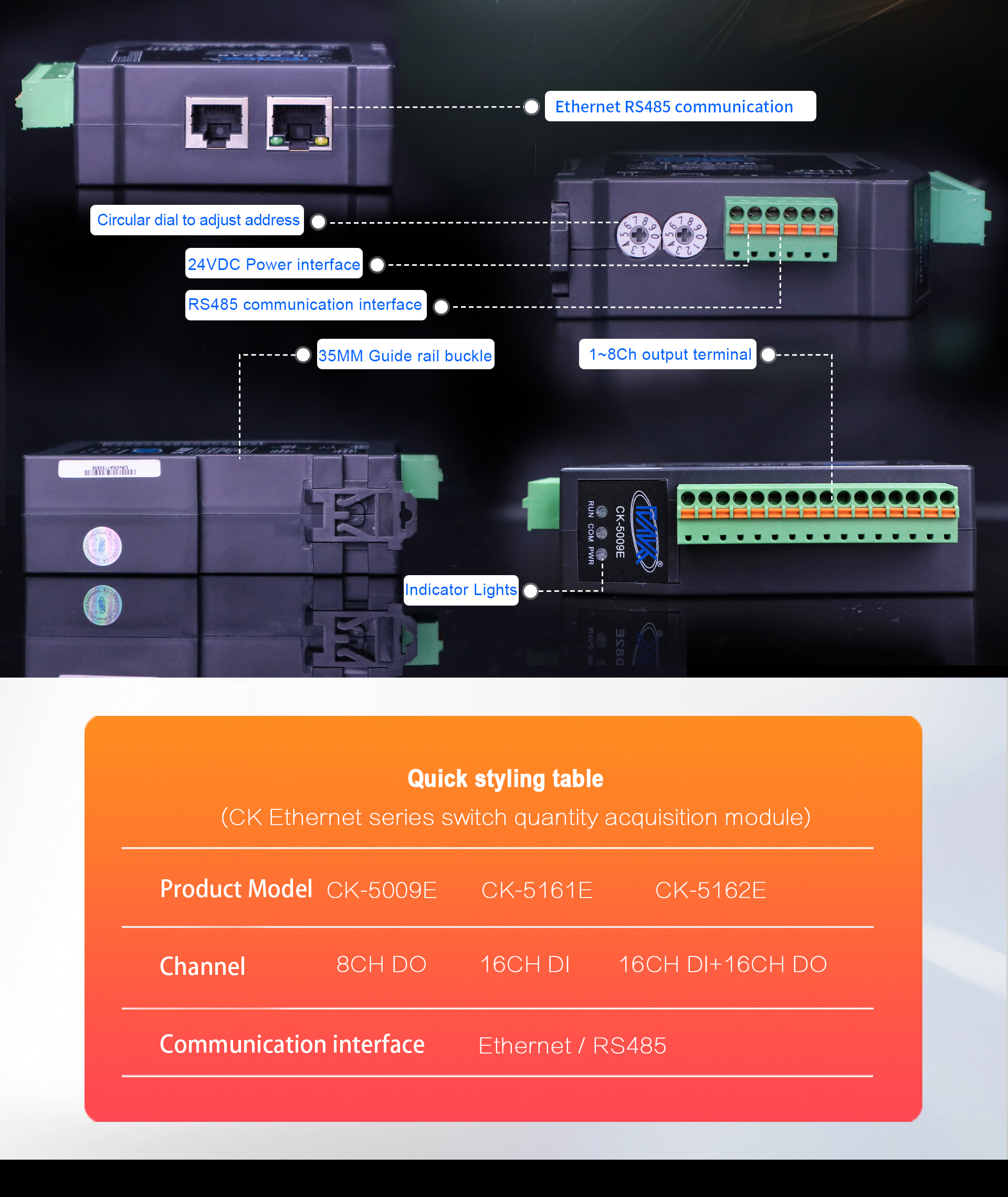

CK-5009E Ethernet RS485 remote IO relay output switch digital module

Specification/Strength：8DO

Interface type: Ethernet, RS485
Bus protocol: Modbus-TCP/Modbus-RTU
DIP: Support local DIP address adjustment 1`99

Join Compare Join Selection

Product DescriptionsTechnical ParameterDownload

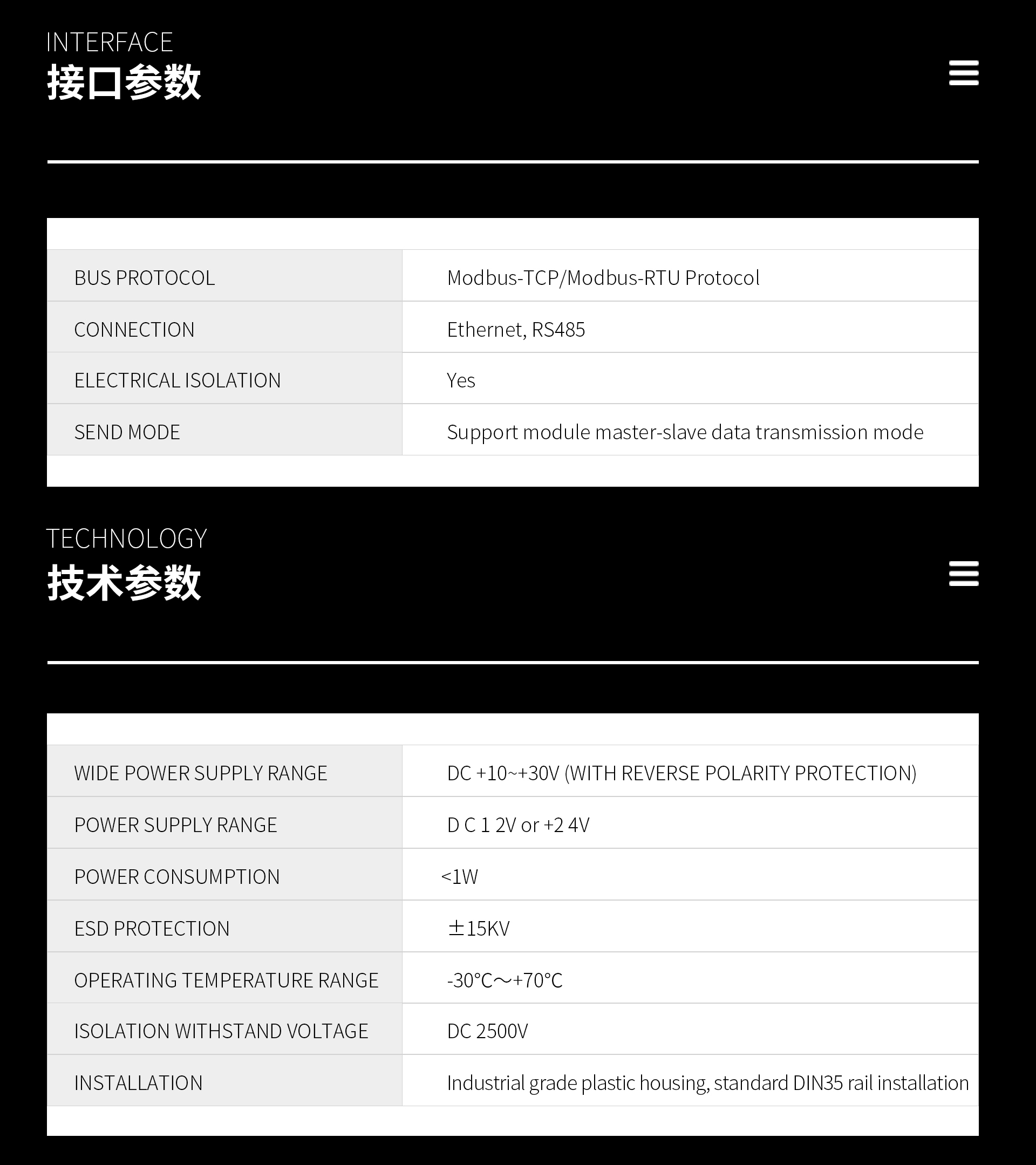

  • Supply voltage

    10~30V DC

  • Communication Interface

    RS485+Ethernet

  • Working temperature

    -30℃~70℃

  • Communication speed

    Default 9600bps (up to 115200bps)

  • Number of channels

    8-way relay output

  • Communication Protocol

    Standard Modbus-TCP and Modbus-RTU protocols

  • Isolation withstand voltage

    DC 2500V

      Documents

      Procedures

    1. Weiluntong Chengkong module modbus tcp example
    2. Mitsubishi Chengkong module modbus tcp example
    3. Omron Chengkong module modbus tcp example
    4. Kunlun Tongtai Chengkong module modbus tcp example
    5. Siemens Chengkong module modbus tcp example
    6. Delta Chengkong module modbus tcp example

      Software

    1. Chengkong Blade Module Configuration Tool V3.51
    2. Product debugging software

      Data Sheet

    1. CK-5009E-Vr1.0 Ethernet Cascade Switch Output Specification

      Application Notes
