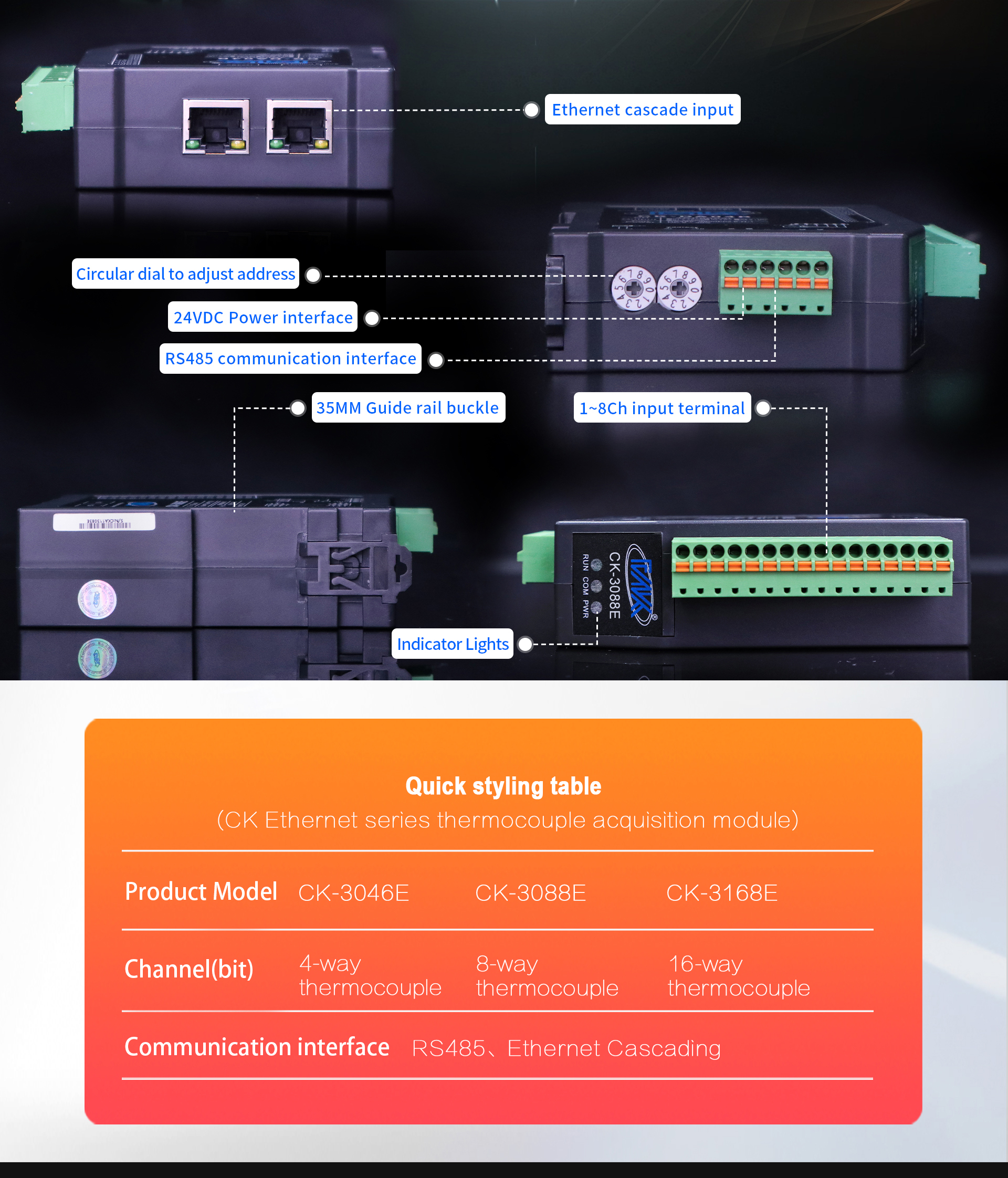

CK-3088E Ethernet cascade K/J/T/E/R/N/B/S thermocouple acquisition module

Specification/Strength：8-way K/J/T/E/R/N/B/S type

Interface type: Ethernet cascade, RS485
Bus protocol: Modbus-TCP/Modbus-RTU
DIP: Support local DIP address adjustment 1`99

Join Compare Join Selection

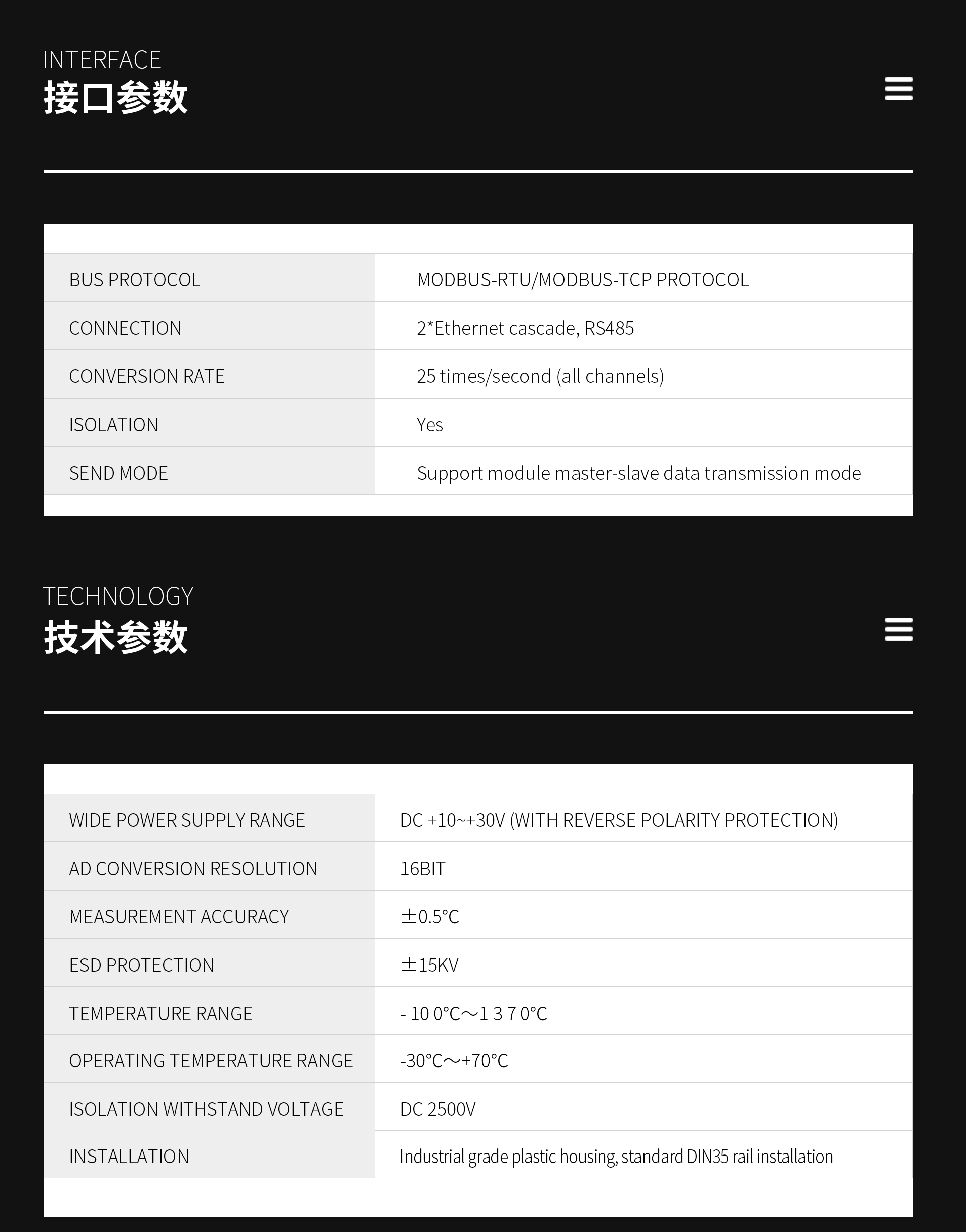

Product DescriptionsTechnical ParameterDownload

  • ADC Resolution

    16Bit

  • Number of channels

    8

  • Conversion speed

    25 times/second (full channel)

  • Supply voltage

    10~30V DC

  • Communication Interface

    Ethernet Cascading

  • Working temperature

    -30℃~70℃

  • Communication speed

    Default 9600bps (up to 115200bps)

  • Conversion accuracy

    ±0.5℃

  • Communication Protocol

    Standard Modbus-TCP and Modbus-RTU protocols

  • Isolation withstand voltage

    DC 2500V

      Documents

      Procedures

    1. Weiluntong Chengkong module modbus tcp example
    2. Mitsubishi Chengkong module modbus tcp example
    3. Omron Chengkong module modbus tcp example
    4. Kunlun Tongtai Chengkong module modbus tcp example
    5. Siemens Chengkong module modbus tcp example
    6. Delta Chengkong module modbus tcp example

      Software

    1. Chengkong Blade Module Configuration Tool V3.51
    2. Product debugging software

      Data Sheet

    1. CK-3046E/3088E/3168E-Vr1.10 Ethernet Cascade Thermocouple Series Specifications

      Application Notes
