CK-DA08ETH Ethernet cascade analog output 4-20ma/0-5V data acquisition module

Specification/Strength：8-way 4-20ma/0-20ma/0-5V/0-10V

Interface type: Ethernet , RS485
Bus protocol: Modbus-TCP/Modbus-RTU
DIP: Support local DIP address adjustment 1`99

Join Compare Join Selection

Product DescriptionsTechnical ParameterDownload

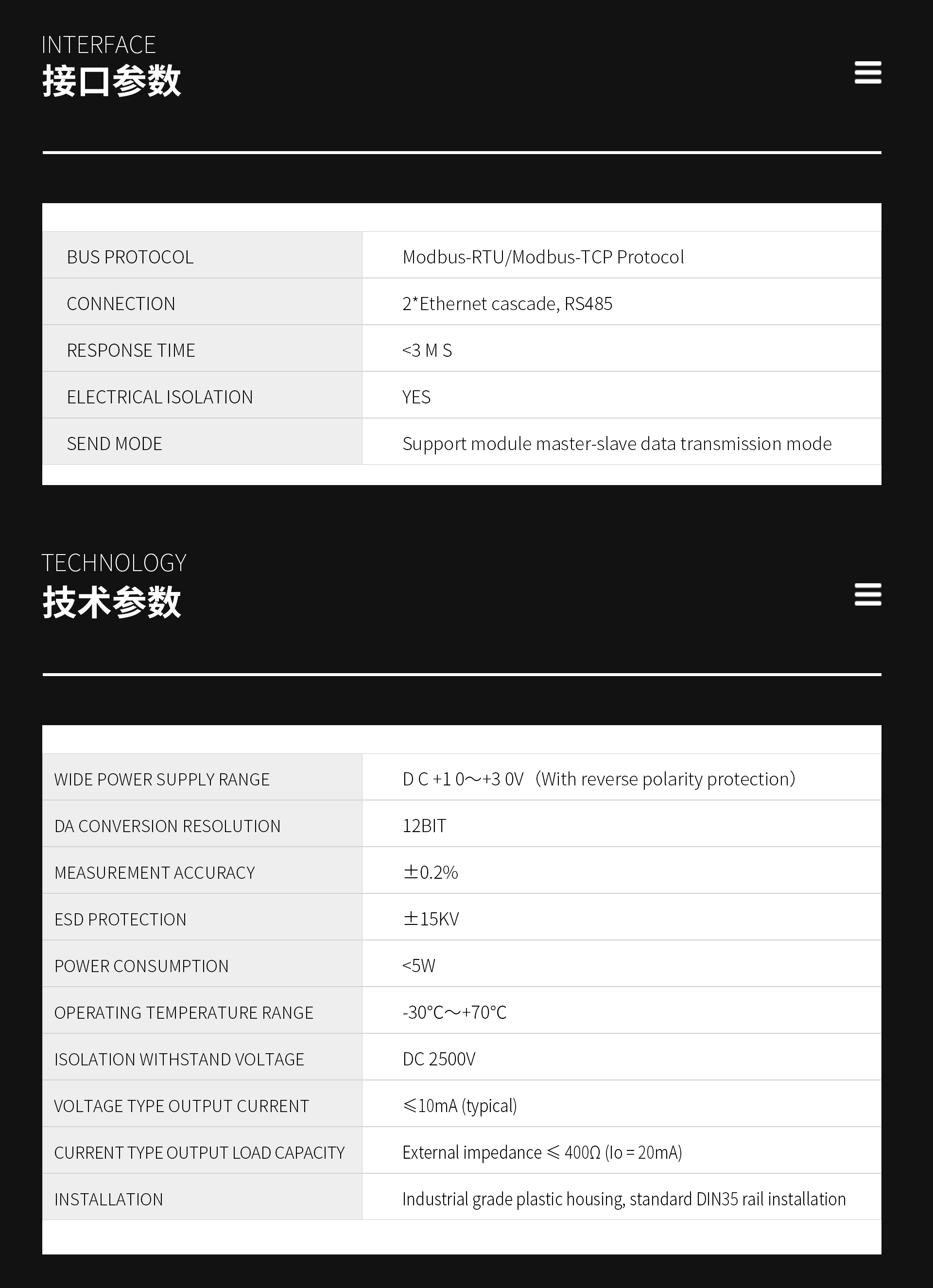

  • Number of channels

    8

  • Supply voltage

    10~30V DC

  • DAC Resolution

    12Bit

  • Communication Interface

    RS485+Ethernet

  • Working temperature

    -30℃~70℃

  • Supply voltage

    24V DC

  • Conversion accuracy

    ±0.2%

  • Communication Protocol

    Standard Modbus-TCP and Modbus-RTU protocols

  • Isolation withstand voltage

    DC 2500V

  • Response time

    <3mS

  • Power consumption

    <5W（@24V DC ）

  • Voltage type output current

    ≤10mA (typical value)

  • Current type output load capacity

    external impedance ≤400Ω(Io=20mA)

      Documents

      Procedures

    1. Weiluntong Chengkong module modbus tcp example
    2. Mitsubishi Chengkong module modbus tcp example
    3. Omron Chengkong module modbus tcp example
    4. Kunlun Tongtai Chengkong module modbus tcp example
    5. Siemens Chengkong module modbus tcp example
    6. Delta Chengkong module modbus tcp example

      Software

    1. Chengkong Blade Module Configuration Tool V3.51
    2. Product debugging software

      Data Sheet

    1. CK-DA08ETH-Vr1.0 Ethernet 8-ch Analog output Specifications

      Application Notes
