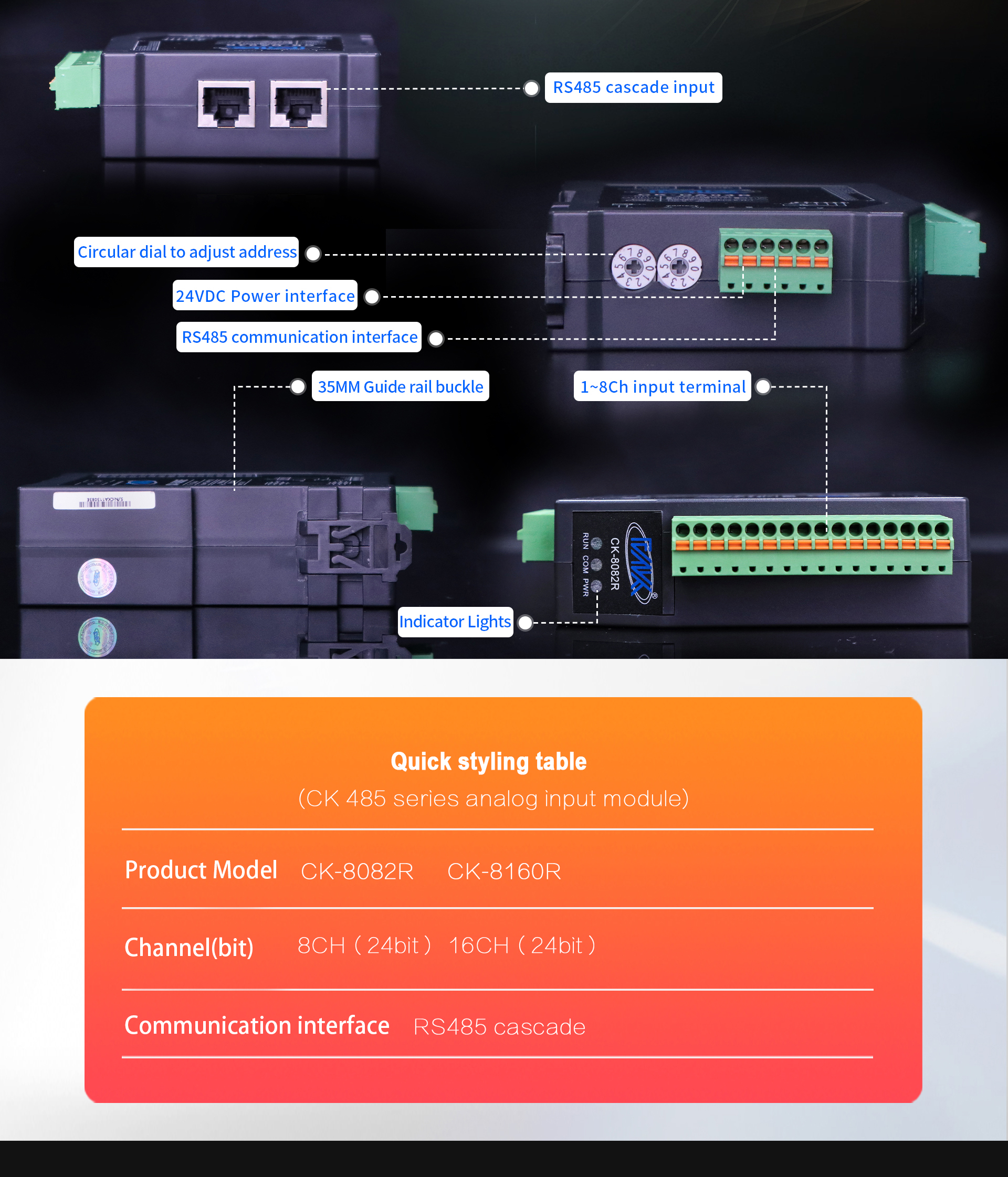

CK-8082R dual 485 port cascade analog input 4-20ma/0-5V data acquisition module

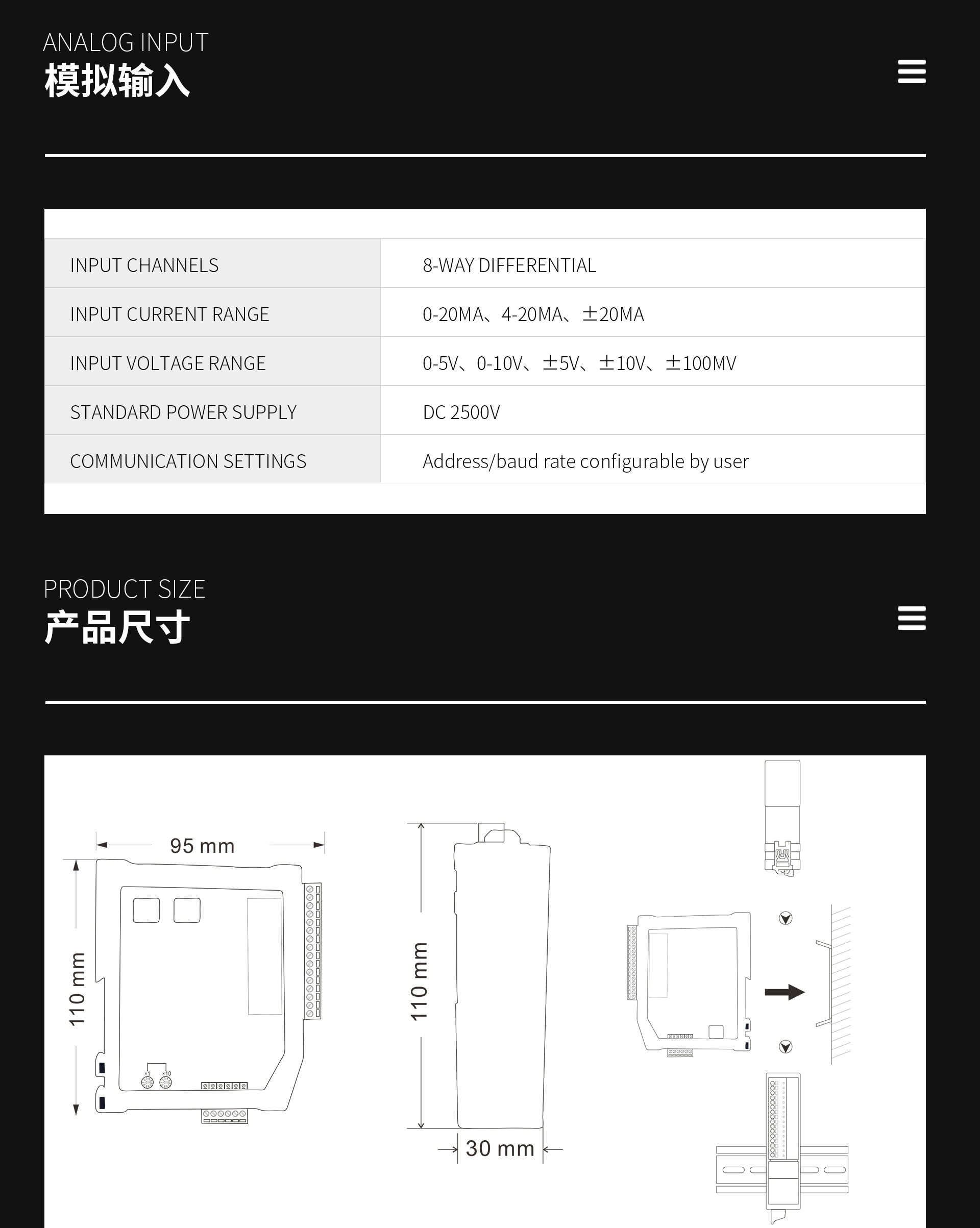

Specification/Strength：8-way 4-20ma/0-20ma/0-5V/0-10V/±5V/±10V/±20ma/±100mV

Interface type: RS485 cascade
Bus protocol: Modbus RTU
Dial: Support local dial address 1`99

Join Compare Join Selection

Product DescriptionsTechnical ParameterDownload

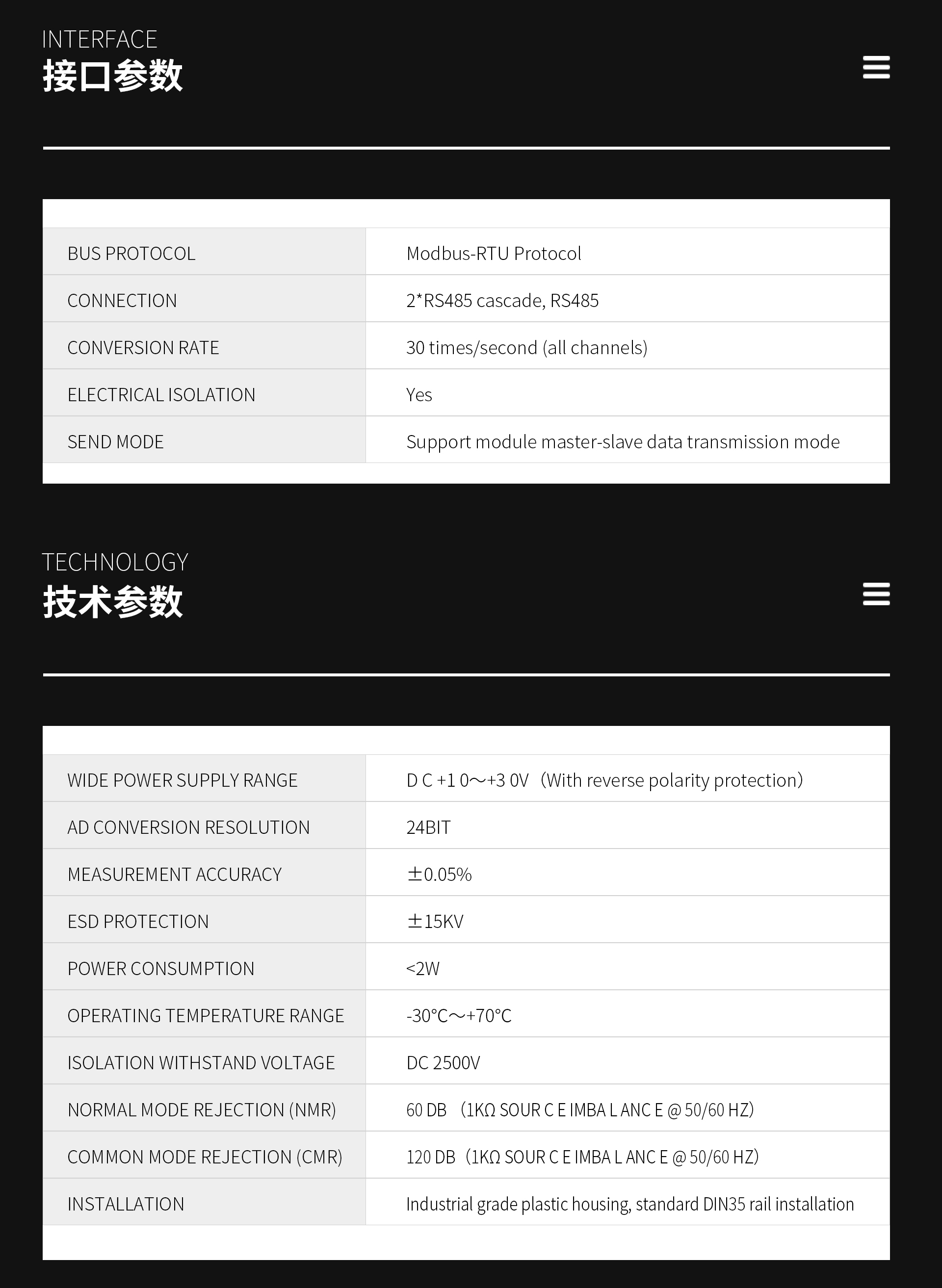

  • Communication Protocol

    Standard Modbus RTU protocol

  • Number of channels

    8

  • Communication Interface

    RS485 Cascading

  • ADC Resolution

    24Bit

  • Supply voltage

    10~30V DC

  • Conversion speed

    30 times/second (full channel)

  • Conversion accuracy

    ±0.05%

  • Working temperature

    -30℃~70℃

  • Communication speed

    Default 9600bps (up to 115200bps)

  • Supply voltage

    24V DC

  • Power consumption

    <2W（@24V DC ）

  • Isolation withstand voltage

    DC 2500V

      Documents

      Procedures

    1. Weiluntong Chengkong module modbus tcp example
    2. Mitsubishi Chengkong module modbus tcp example
    3. Omron Chengkong module modbus tcp example
    4. Kunlun Tongtai Chengkong module modbus tcp example
    5. Siemens Chengkong module modbus tcp example
    6. Delta Chengkong module modbus tcp example

      Software

    1. Chengkong Blade Module Configuration Tool V3.51
    2. Product debugging software

      Data Sheet

    1. CK-8082R-Vr1.0 RS485 cascade 8-ch analog input specification

      Application Notes
